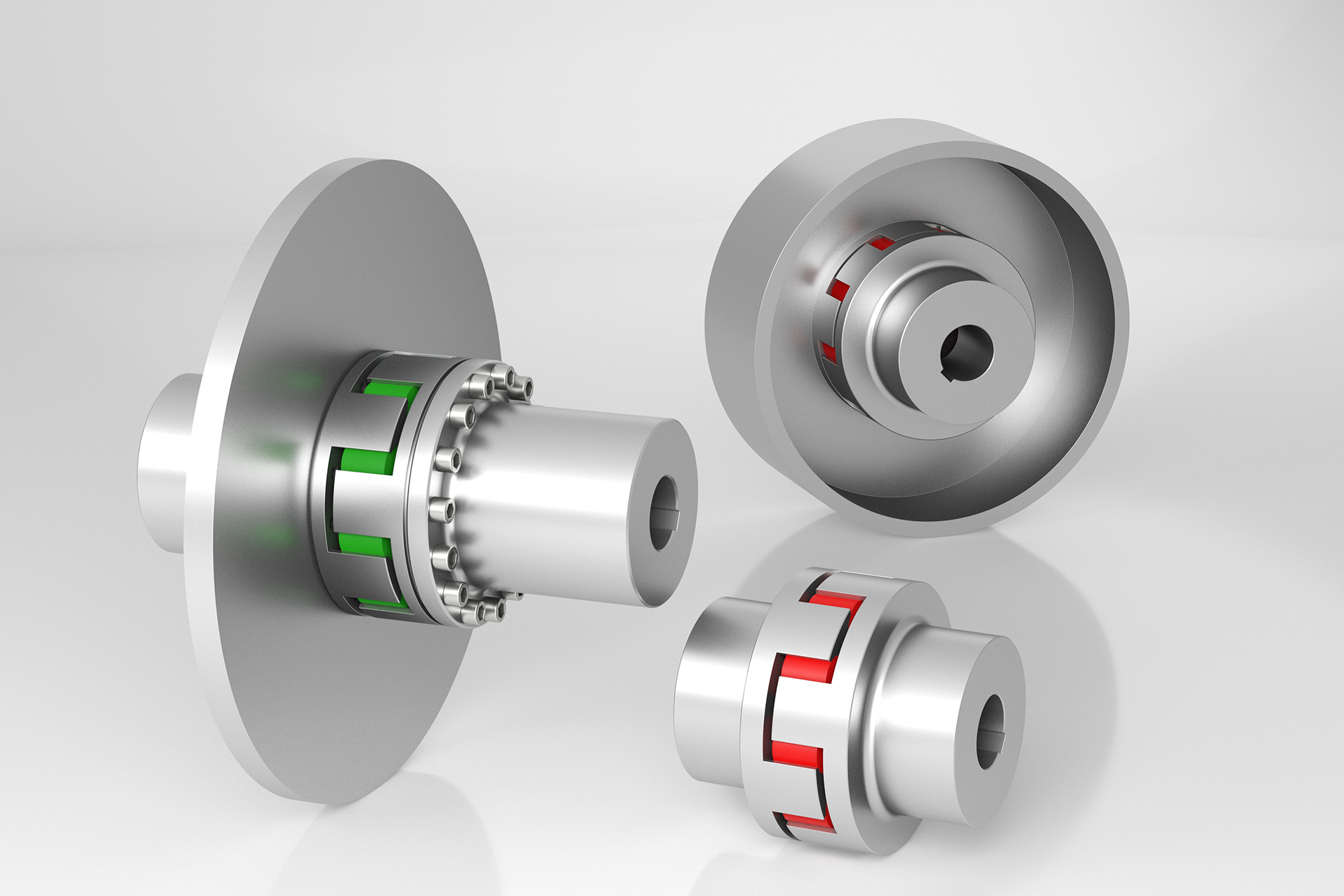

Elastomer Jaw Couplings TNS | RINGFEDER®

The enormously powerful and resilient Elastomer Jaw Couplings of the RINGFEDER® TNS series – formerly known as TSCHAN® TNS – are the preferred choice of leading plant manufacturers and operators, especially in the field of highly demanding heavy-duty applications. These torsionally flexible and fail-safe quality couplings are optimally used e.g. as drive components in a wide variety of construction and building machinery as well as in steel, mining and cement plant technology, but also as connecting elements in overhead, container and casting cranes. They compensate for angular, radial and axial shaft misalignment within defined ranges and transmit the torque by means of pressure-loaded elastomers made of Perbunan or Polyurethane of different Shore hardnesses, which are connected to form an oil-resistant, vibration- and shock-damping intermediate ring. Due to their torsional elasticity, dangerous torsional vibrations from the operating range of the machinery are systematically shifted to speed ranges where no negative effects are to be expected. The Elastomer Couplings of the RINGFEDER® TNS series, manufactured to the highest quality standards, are extremely service-friendly, can be plugged axially and are applicable in any installation position and direction of rotation. They are available to customers in a wide variety of proven standard and individual special designs.

Request
Product Paper GWE, TNM, TNS & TNB (PDF)

Elastomer Jaw Couplings TNS

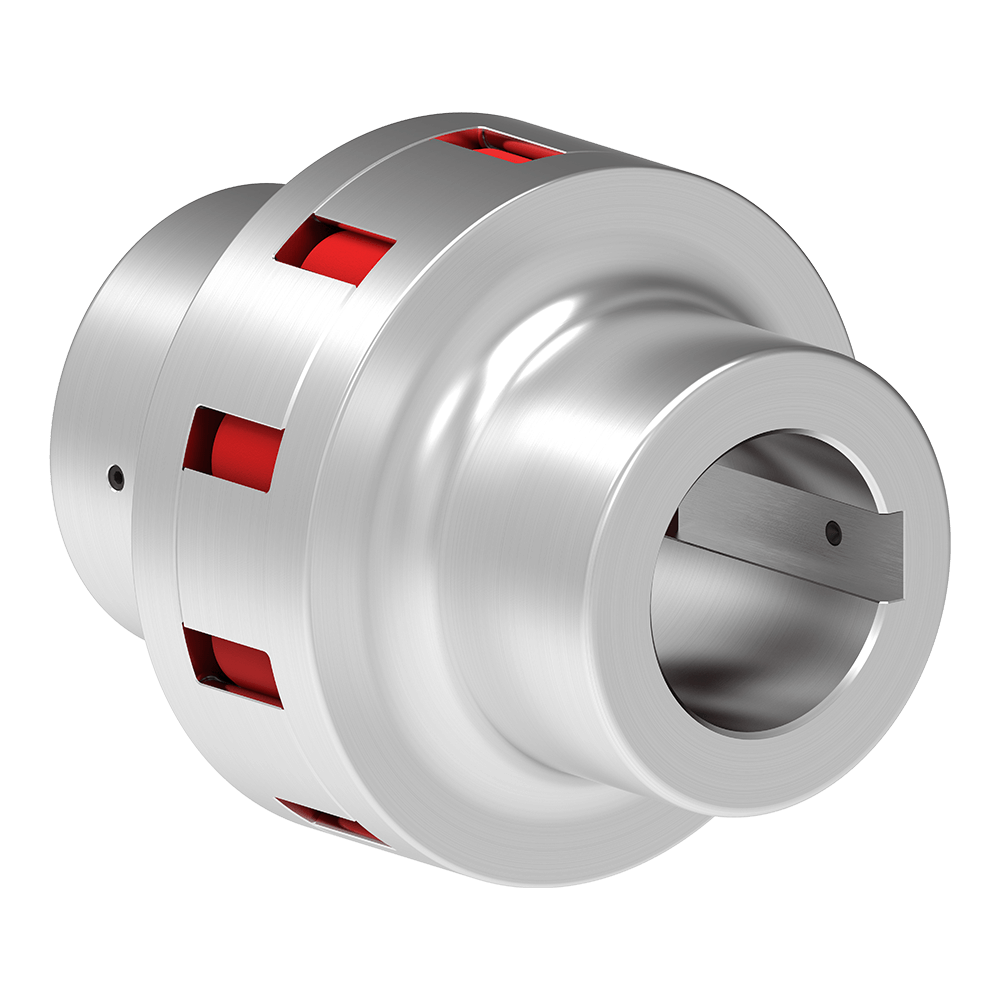

Elastomer Jaw Couplings TNS S-St | RINGFEDER®

TNS S-St

Type with Two Single-Part Coupling Hubs in Standard Version

  • 13 Sizes
  • Max. Bore Diameter
    d1: 25-160 mm; d2: 25-160 mm
  • Outer Diameter: D1: 50-400 mm
  • Overall Length L: 75-400 mm
  • Rot. Speed nmax: 1,900-15,000 1/min
  • Torque TKN: 15-8,900 Nm
View

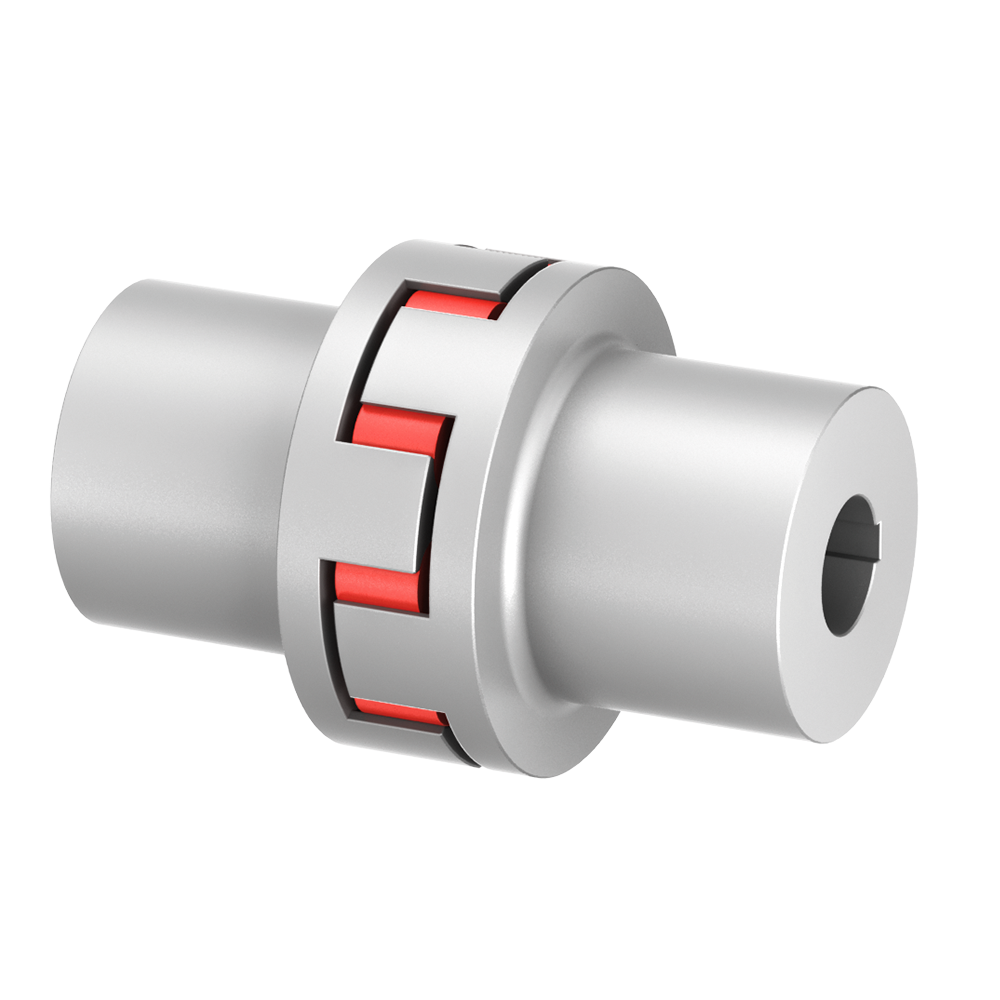

Elastomer Jaw Couplings TNS S-LSt | RINGFEDER®

TNS S-LSt

Type with Two Single-Part Coupling Hubs in Extended Version

  • 10 Sizes
  • Max. Bore Diameter
    d1: 25-160 mm; d2: 25-160 mm
  • Outer Diameter: D1: 50-400 mm
  • Overall Length L: 96-440 mm
  • Rot. Speed nmax: 1,900-15,000 1/min
  • Torque TKN: 15-8,900 Nm
View

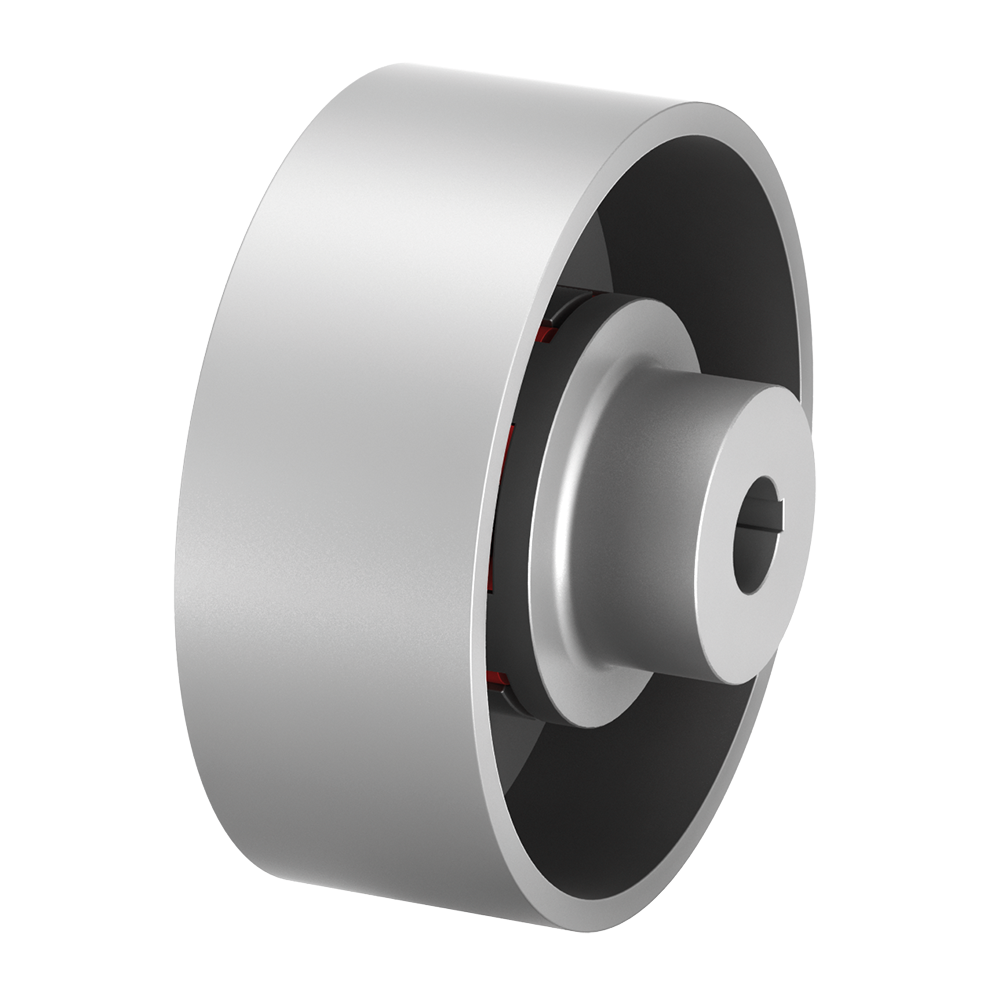

Elastomer Jaw Couplings TNS S-BT | RINGFEDER®

TNS S-BT

Type with Two Single-Part Coupling Hubs in Standard Version and Brake Drum

  • 16 Sizes
  • Max. Bore Diameter
    d1: 48-160 mm; d2: 42-160 mm
  • Outer Diameter: D1: 105-400 mm
  • Overall Length L: 125-400 mm
  • Rot. Speed nmax: 1,200-4,200 1/min
  • Torque TKN: 130-8,900 Nm
View

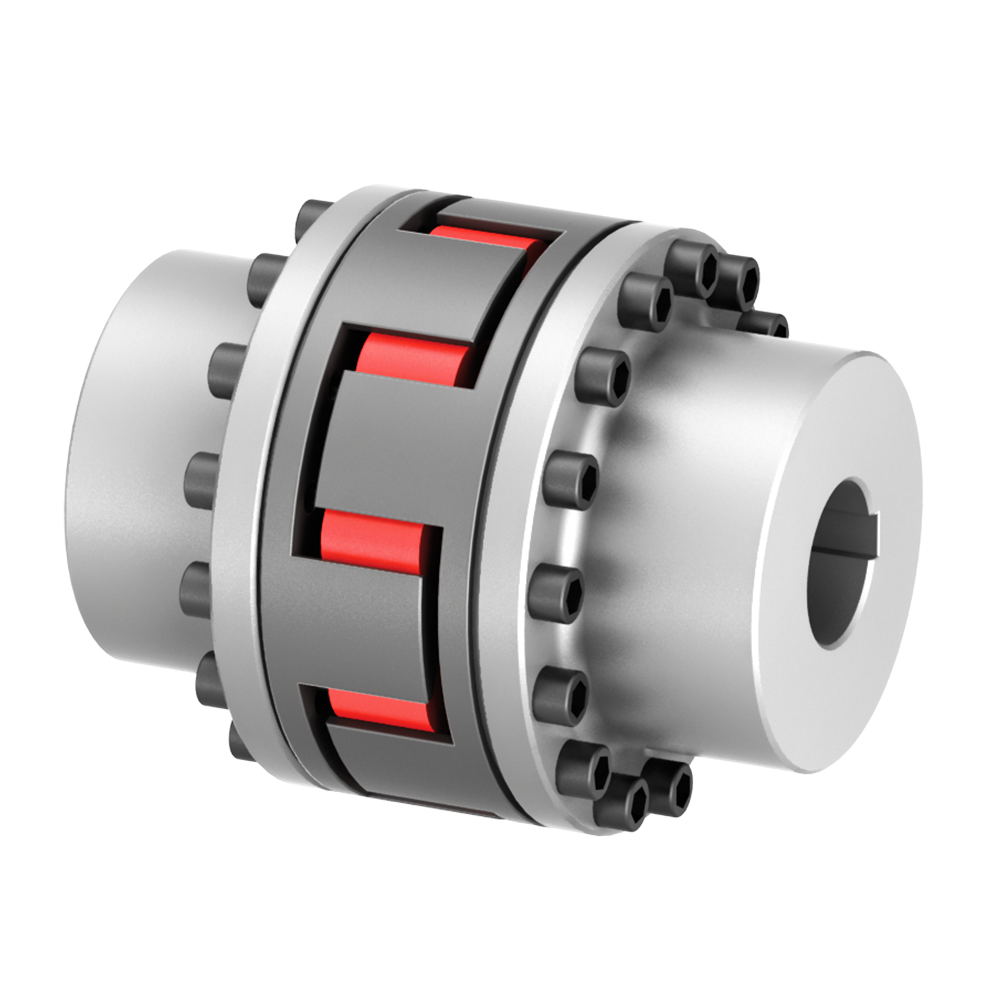

Elastomer Jaw Couplings TNS SDD-5 | RINGFEDER®

TNS SDD-5

Type with Two Standard Flange Hubs and Radially Removable Jaw Ring

  • 10 Sizes
  • Max. Bore Diameter
    d1: 45-160 mm; d2: 45-160 mm
  • Outer Diameter: D1: 105-400 mm
  • Overall Length L: 150-469 mm
  • Rot. Speed nmax: 1,900-7,250 1/min
  • Torque TKN: 130-8,900 Nm
View

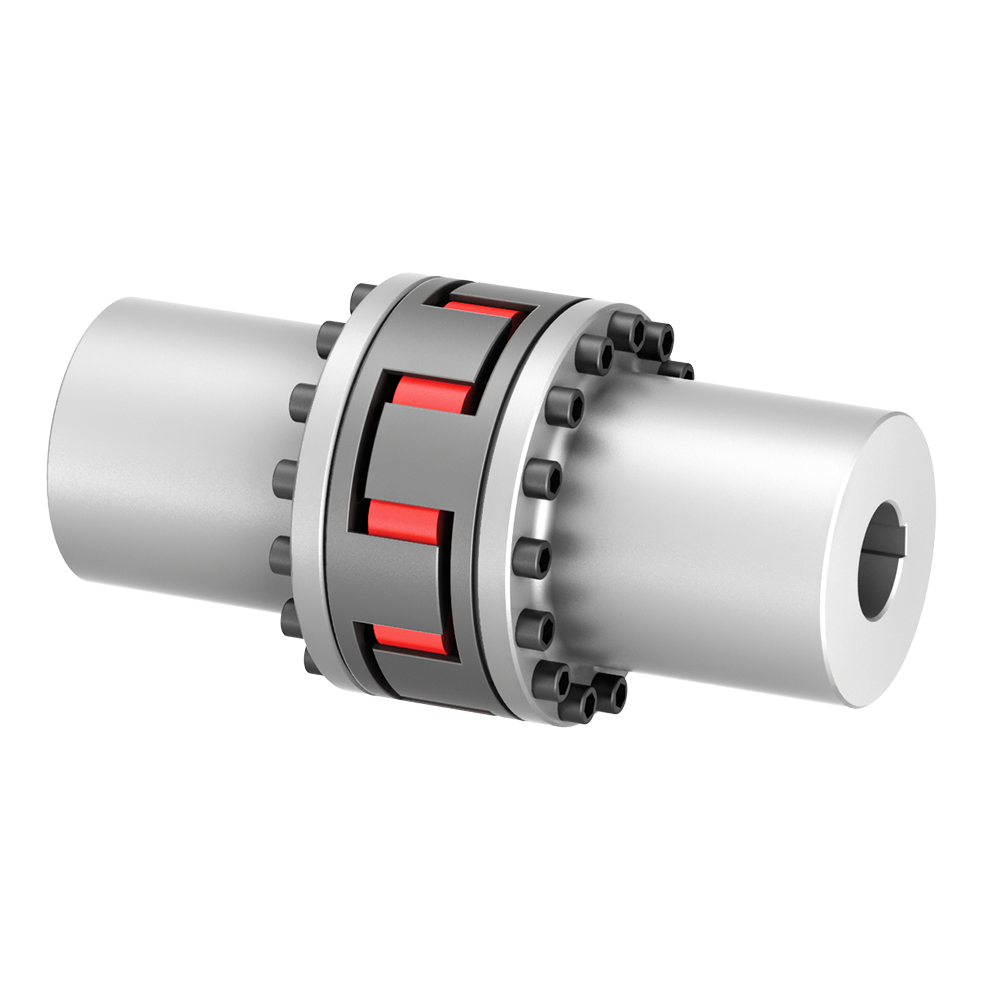

Elastomer Jaw Couplings TNS SDDL-5 | RINGFEDER®

TNS SDDL-5

Type with Two Extended Flange Hubs and Radially Removable Jaw Ring

  • 10 Sizes
  • Max. Bore Diameter
    d1: 45-160 mm; d2: 45-160 mm
  • Outer Diameter: D1: 105-400 mm
  • Overall Length L: 272-625 mm
  • Rot. Speed nmax: 1,900-7,250 1/min
  • Torque TKN: 130-8,900 Nm
View
Elastomer Jaw Couplings TNS SDDL-5-BS | RINGFEDER®

TNS SDDL-5-BS

Type Identical to TNS SDDL-5, Additionally with Integrated Brake Disc

  • 23 Sizes
  • Max. Bore Diameter
    d1: 65-160 mm; d2: 65-160 mm
  • Outer Diameter: D1: 145-400 mm
  • Overall Length L: 344.5-627.5 mm
  • Rot. Speed nmax: 1,700-4,800 1/min
  • Torque TKN: 600-13,350 Nm
View

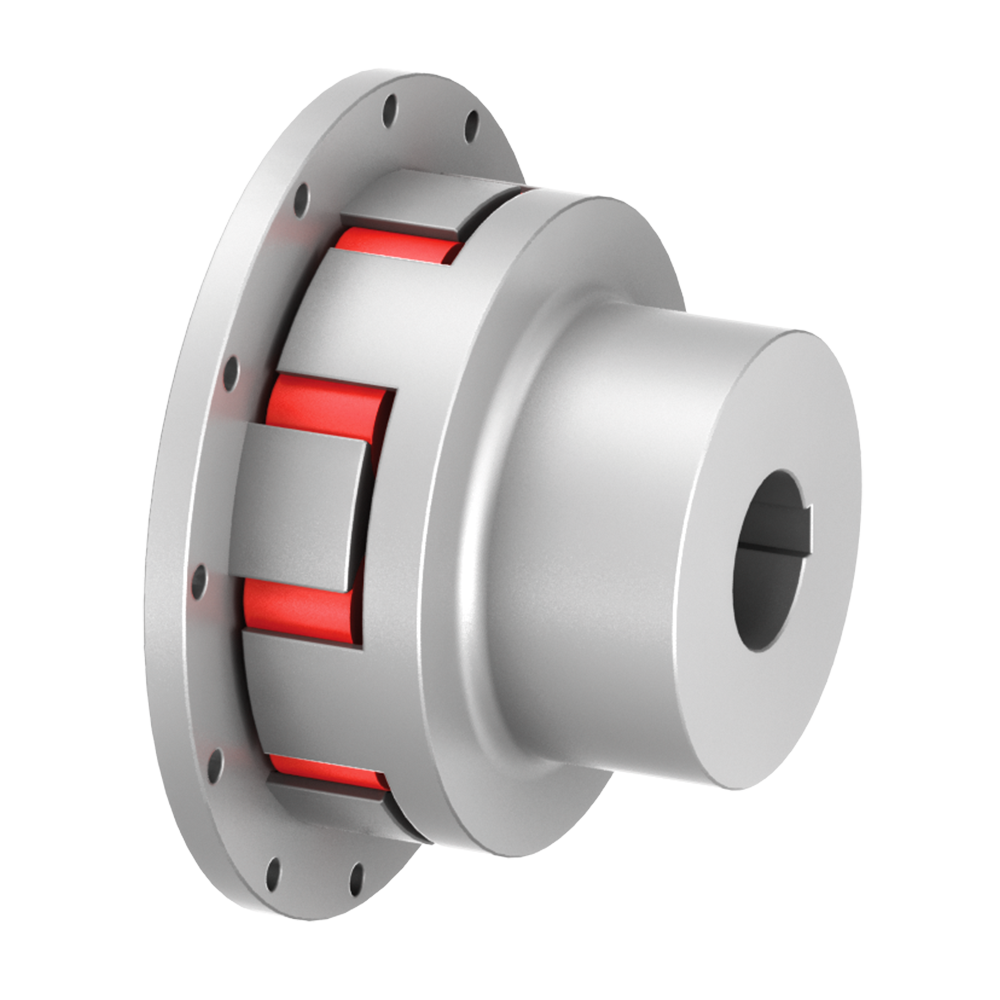

Elastomer Jaw Couplings TNS SX | RINGFEDER®

TNS SX

Type with Single-Part Coupling Hub in Standard Version and Jaw Flange

View

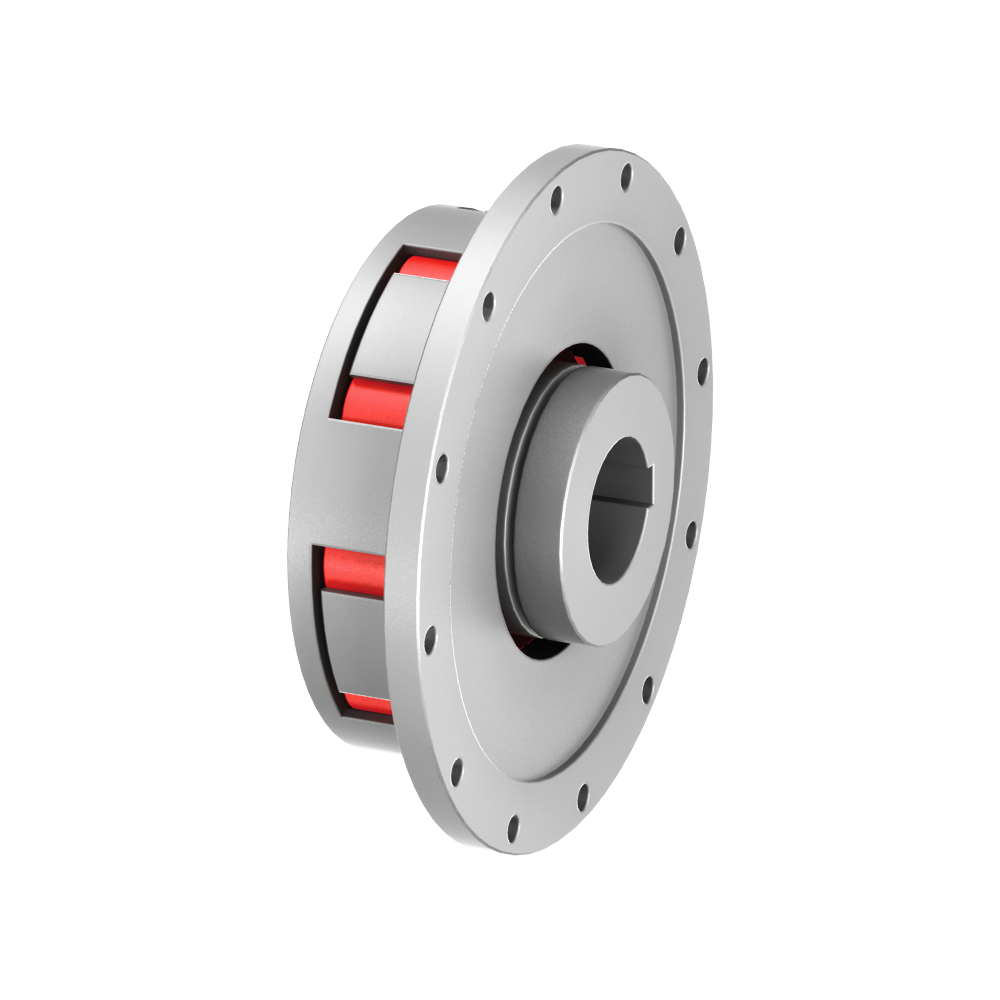

Elastomer Jaw Couplings TNS SV | RINGFEDER®

TNS SV

Highly Compact Type with Single-Part Inner Hub and Jaw Flange

  • 12 Sizes
  • Max. Bore Diameter
    d1: 27-160 mm; d2: 27-160 mm
  • Outer Diameter: D1: 105-400 mm
  • Overall Length L: 42-125 mm
  • Rot. Speed nmax: 1,900-7,250 1/min
  • Torque TKN: 70-4,750 Nm
View
