Elastomer Jaw Couplings GWE 5106

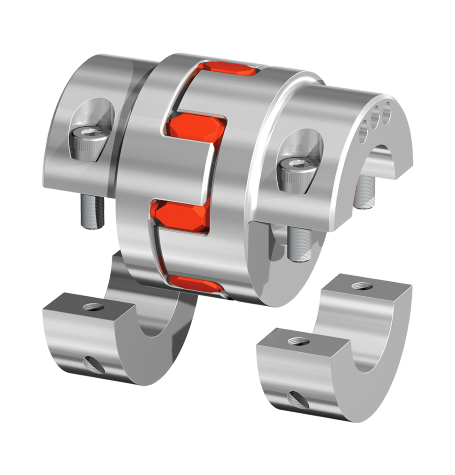

Self-aligning coupling with clamping hubs in split hub design

The RINGFEDER^® GWE 5106 combined the advantage of the RINGFEDER® GWE 5104 Servo-Insert Coupling with an easy installation. The clamping hubs in split hub design can be mounted lateral at the aligned shaft extensions. The shaft tolerance should lie within the ﬁt tolerance ‘g6’ to ‘h7’.

Download

Video

Request

Technical Data & CAD Models

Download of CAD data is available to you after login with your personal Customer or Distributor Account. You do not have an account yet? Register here without any costs or obligations.

Size	d_1min mm	d_1max mm	D₁ mm	C₁ mm	H mm	H₃ mm	L mm	T Nm	n_max 1/min	D_G1 mm	T_A1 Nm
14	5	16	30	11	32,5	13	35	12,5	13000	3	2
19	6	20	40	25	46	16	66	17	10000	6	11
24	10	32	55	30	57	18	78	60	7000	6	15
28	10	38	65	35	71	20	90	160	6000	8	32
38	12	48	80	45	83	24	114	325	5000	8	38
42	14	54	95	50	95	26	126	450	4000	10	84
48	15	60	105	56	106	28	140	525	3600	12	145
55	35	74	120	65	120	30	160	685	3150	12	145
65	35	80	135	75	135	35	185	940	2800	12	145
75	30	95	160	85	160	40	210	1920	2350	16	295

Size	d_1min inch	d_1max inch	D₁ inch	C₁ inch	H inch	H₃ inch	L inch	T ft-lbs	n_max rpm	D_G1 mm	T_A1 ft-lbs
14	0.197	0.63	1.181	0.433	1.28	0.512	1.378	9	13000	3	1.5
19	0.236	0.787	1.575	0.984	1.811	0.63	2.598	13	10000	6	8
24	0.394	1.26	2.165	1.181	2.244	0.709	3.071	44	7000	6	11
28	0.394	1.496	2.559	1.378	2.795	0.787	3.543	118	6000	8	24
38	0.472	1.89	3.15	1.772	3.268	0.945	4.488	240	5000	8	28
42	0.551	2.126	3.74	1.969	3.74	1.024	4.961	332	4000	10	62
48	0.591	2.362	4.134	2.205	4.173	1.102	5.512	387	3600	12	107
55	1.378	2.913	4.724	2.559	4.724	1.181	6.299	505	3150	12	107
65	1.378	3.15	5.315	2.953	5.315	1.378	7.283	693	2800	12	107
75	1.181	3.74	6.299	3.346	6.299	1.575	8.268	1416	2350	16	218

Images & Drawings

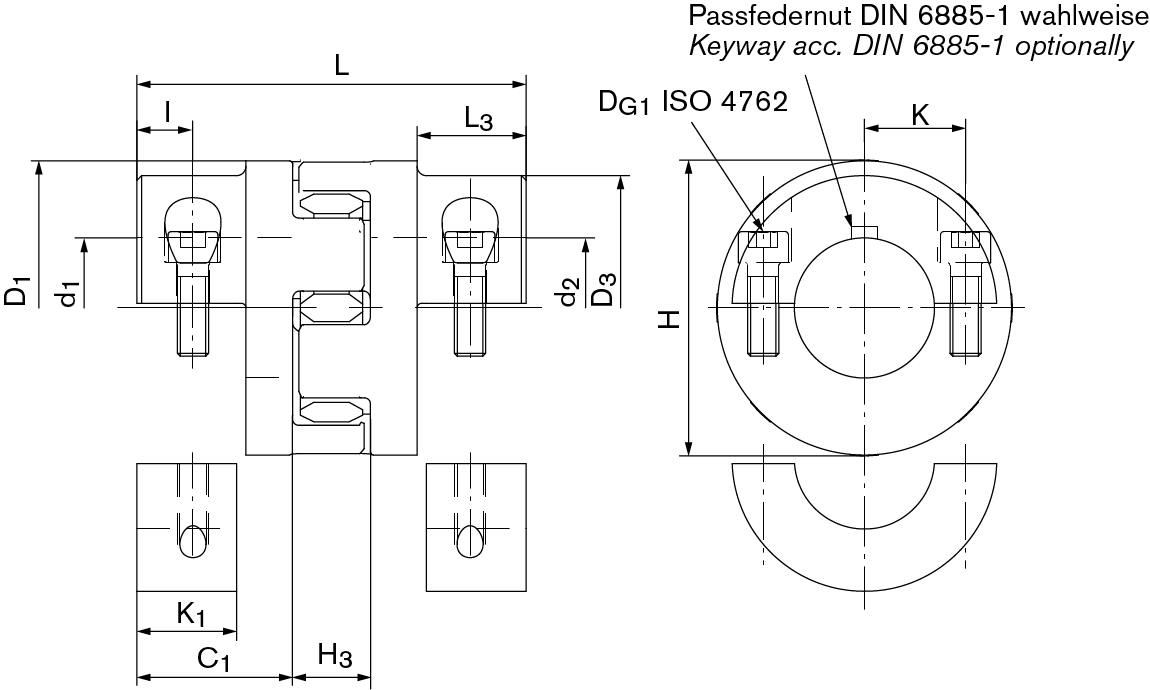

Dimensions

Product Characteristics

Backlash-free Elastomer Jaw Couplings
RINGFEDER^® GWE

Backlash-free RINGFEDER^® GWE jaw couplings are used in engineering where high positioning precision requires vibration damping in greatly accelerated processes and the use of plug-in coupling solutions is preferred.

Advantages

Backlash-free, through pre-stressing
Pluggable
Vibration damping
Torques from 0,5 – 650 Nm
Compensation of radial, axial and angular misalignment
Electrically isolating

Applications

Encoder
Precision drives
Feed drives
Grinding and milling spindles
Machine tools
Packing machines
Robotics
Transfer lines
Multi-spindle heads
Wood processing equipment
Textile machinery
Conveying equipment

Linear motion
Measuring equipment and control technology
Test rigs

Technical description

Every hub on the RINGFEDER^® GWE jaw coupling has concave jaws on its face. The function of the coupling to transmit torque and damp impact that occurs, as well as balancing out unavoidable mis- alignments, is enabled through the joining of two hubs and the ﬁlling of the created free space with an elastic sprocket. The GWE jaw couplings are backlash-free in order to also achieve a high level of positioning precision in reverse operation. The coupling is backlash-free as a result of the pressure pre-tensioning of the individual buffers in the elastomer sprocket. The different Shore hardness levels, which correlate to the torsional stiffness, mean that it is possible to optimise the entire drive line from the point of view of rotary oscillation. Detailed information is included in the technical data for the sprockets.

Characteristics GWE 5106

Low mass through aluminium hubs
Optimisation of the vibration damping through different elastomer spider hardness levels
As standard with red elastomer spider. Up to size 55 in 98 Shore A and from size 65 in 95 Shore A
Simple radial installation and removal without shifting the shafts
Puncture-proof and electrically insulating
Coupling hubs optionally with keyways in accordance with DIN 6885-1
