Elastomer Jaw Couplings TNB BHDD

RINGFEDER^® TNB Type BHDD

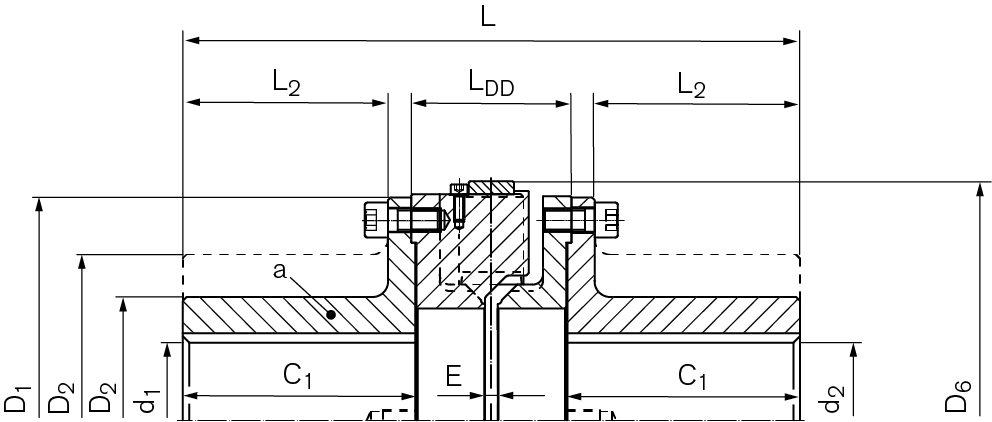

Multi-part design with radially removable central section and VkR buffer. Easy replacement of the elastic buffer without axial movement of the coupled machines. Easy assembly of the drive train due to the insertable central section.

General features

• Torsionally flexible, compensate for angular, radial and axial shaft misalignment
• Buffers loaded in compression
• Buffers can be replaced radially without having to move the coupled machines
• Elastomers available in various shore hardness degrees
• Suitable for temperatures from –30°C to +100°C
• Outer diameter up to 900 mm
• Bores up to max. 400 mm
• Torques up to T_Kn = 260,000 Nm / T_Kmax = 780,000 Nm
• Speeds up to n_max = 4,100 rpm

INTRODUCTION

The rotationally resilient, failsafe claw coupling RINGFEDER^® TNB series is flexible in all directions and therefore compensates for angular, parallel and axial shaft misalignments of the connected machines. Misalignments can be caused, for example, by inaccurate assembly, heat movements or settling phenomena.

Avoiding Torsional Vibration

By virtue of the rotational resilience of the coupling, dangerous torsional vibrations from the operational range of plant machinery can be transferred to rotational speed ranges in which no negative effects are to be expected. The elastic buffers possess a high material damping capability which makes it possible for the couplings to keep the resonance enhancements within limits when passing through dangerous speed ranges, thereby protecting the coupled machines against damage. The couplings also mitigate torque shocks and cause a vibrating system that has been excited by an impact to come to rest very quickly due to the material damping qualities. The conduction of structure-borne noise is prevented.

Elastomer Materials

The elastic RINGFEDER^® TNB buffers are made of butadiene-nitril-rubber (Pb82) or polyurethane (VkR, VkW). The black buffer (Pb82) are normally electrically conductive and therefore prevent undesirable electrostatic charges. The red (VkR) and white (VkW) buffers ensure electrical insulation between connected machines as long as there are no other electrically conductive connections. The resilience of the individual elastomer materials is designated by their Shore hardness. From these values an indirect conclusion can be drawn with respect to the torques the coupling is able to transmit and its spring stiffness. For further details, please see the technical data sheet.

Environmental conditions

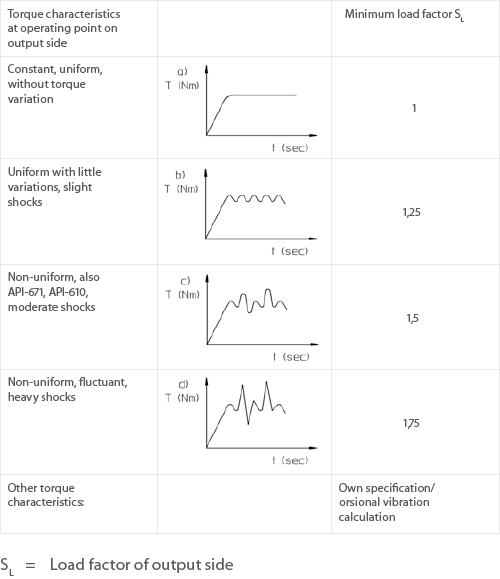

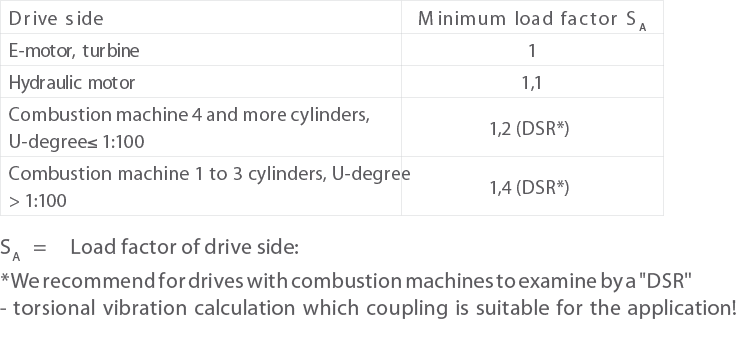

The employed elastomer materials operate reliably in ambient temperature ranges of –30° to +100°C. Please contact RINGFEDER POWER TRANSMISSION if higher ambient temperatures are involved. The influence of the temperature on the coupling size selection is explained in more detail in the below-mentioned design directives. It is only allowed to operate the coupling in normal industrial air. Aggressive media may attack the coupling components, bolts and elastic elements, and, therefore, present a danger to the operational safety of the coupling. The coupling can be declared compliant with the European Directive 2014/34/EU (ATEX). Please contact RINGFEDER POWER TRANSMISSION regarding the declaration of conformity according to 2014/34/EU and the effects of aggressive ambient media.
