Flange Couplings TNF 5571 | RINGFEDER®

Backlash-Free, Frictional Shaft-Shaft Con­nec­tion with Maximum Concentricity

  • 20 Sizes
  • External or internal clamping
  • Shaft Diameter dw: 70-540 mm (2.756-21.259 inch)
  • Outer Diameter A: 240-1,200 mm (9.449-47.244 inch)
  • Total Length Ltotal: 150-750 mm (5.905-29.528 inch)
  • Torque T: 6,900-2,000,000 Nm (4,941.67-1,475,124.2 ft·lb)

Request

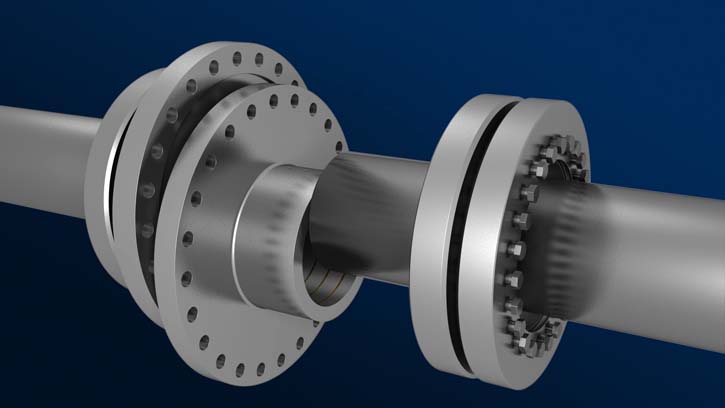

Video
Downloads

Product Characteristics

Your Advantages

Flange Couplings of the RINGFEDER® TNF 5571 type are used to reliably establish an absolutely backlash-free connection between two shafts by means of frictional locking. They are the more powerful and more economic alternative to conventional press fits. For assembly, the flange halves are simply pushed onto the shaft ends and friction-locked by means of shrink discs – the flanges are then also connected using a simple screw connection. Neither additional components such as keyways or wedges nor heating of the inner section or cooling of the outer are are necessary.

RINGFEDER® Flange Couplings are torsionally rigid and are characterized by high concentricity as well as the admissibility of large shaft tolerances. In addition to highest torques, they also transmit occurring bending loads as well as axial and radial forces without wear and with high precision.



Flange couplings of the RINGFEDER® TNF 5571 type are particularly convincing due to the following features:

  • Zero backlash, wear and maintenance
  • Robust connection with high strength reserves
  • Direct power transmission between shaft and flange
  • Highest concentricity
  • Easy mounting and dismounting
  • Shaft diameter dw up to 540 mm (21.259 inch)
  • Outer diameter A up to 1,200 mm (47.244 inch)
  • Torque range T up to 2,000,000 Nm (1,475,124.2 ft·lb)



ATEX Compliance

For maximum safety in explosion-endangered areas, RINGFEDER® Flange Coup­lings can of course be supplied in compliance with ATEX according to Product Directive 2014/34/EU and DIN EN ISO 80079-36:2016 if required.



Main Areas of Use

  • Gearbox and Motor Engineering

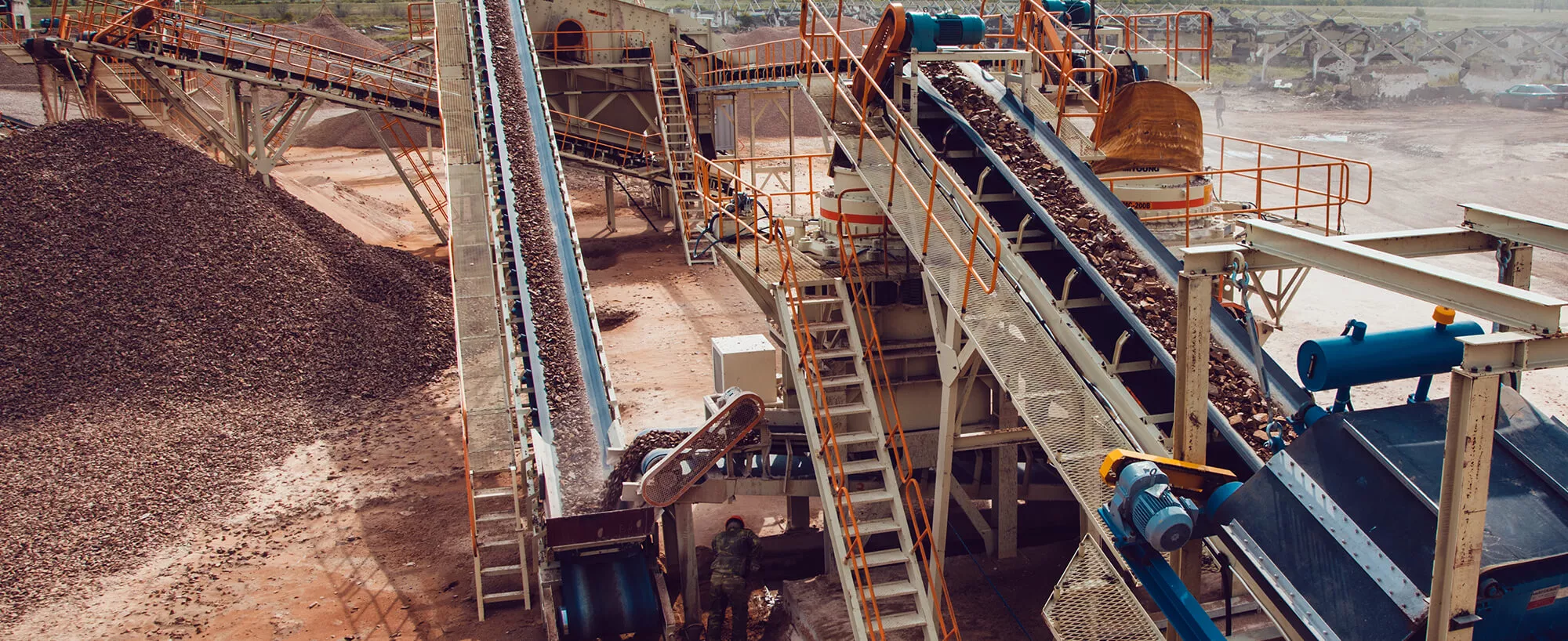

  • Conveyor Systems (e.g. Belt Drives)
  • Mixing and Process Technology
  • Crushing Units
  • Hydro Power Technology
  • Elevators



Versions

Flange Couplings of the RINGFEDER® TNF 5571 type are available in two different versions according to the respective requirements:

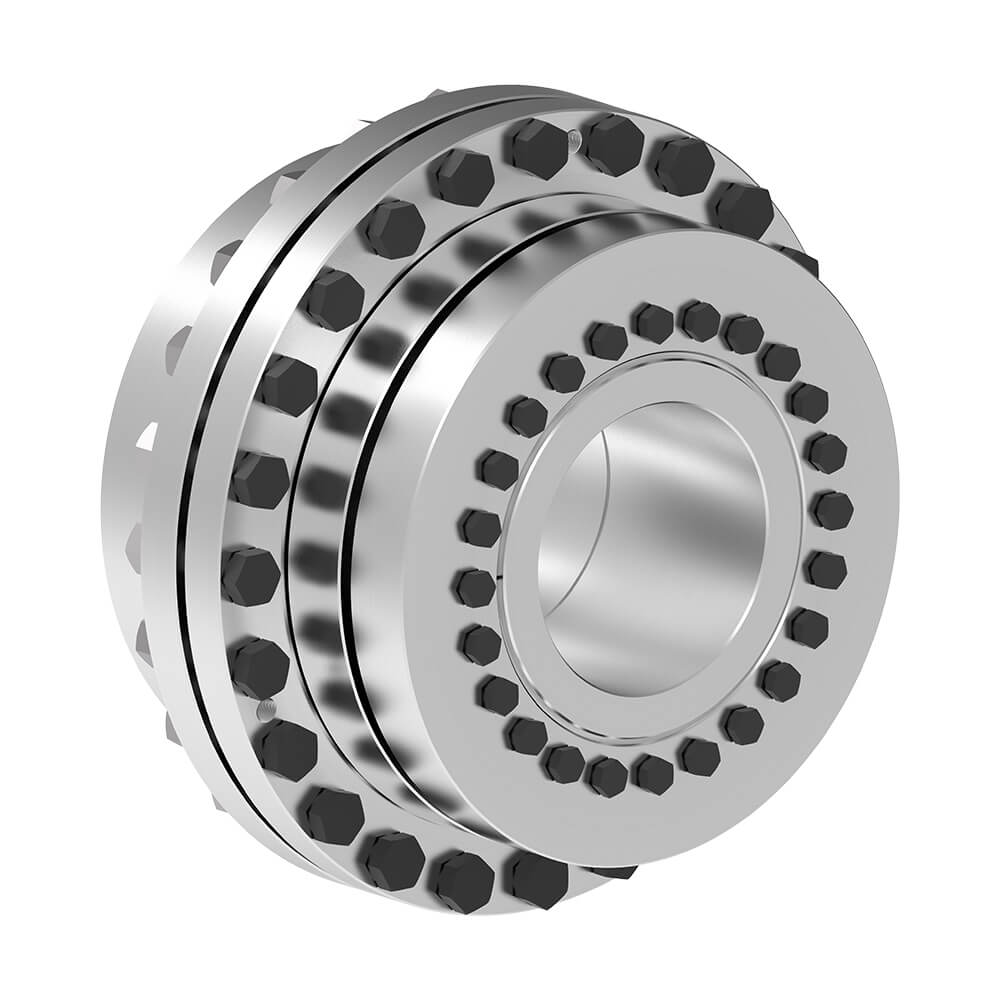

  • Version A – Shrink discs with hexagon head screws (HM = External Centering; HF = Internal Centering)

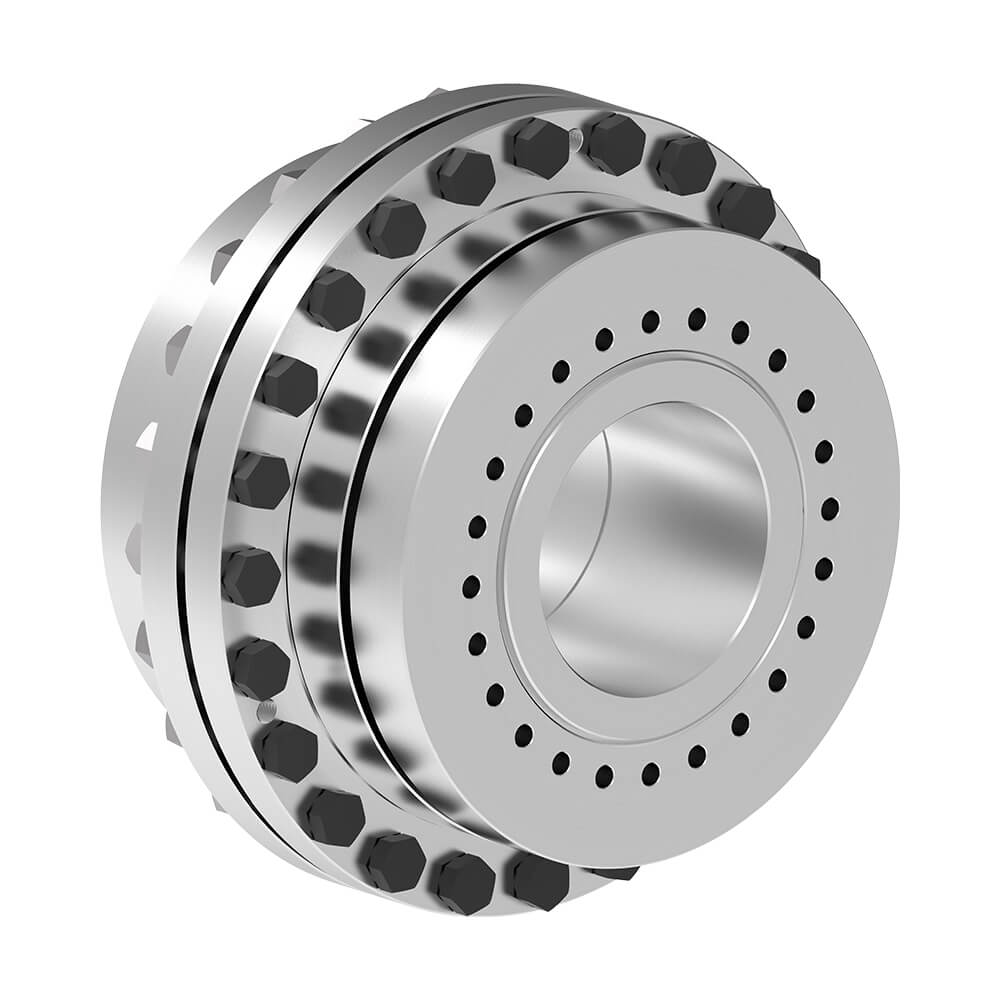

  • Version B – Shrink discs with hexagon socket screws (HM = External Centering; HF = Internal Centering)



Technical Information

Moreover, please observe the detailed selection and operating criteria in the documents Product Paper Flange Coup­lings RINGFEDER® TNF and Tech Paper Flange Coup­lings RINGFEDER® TNF 5571.

Images & Drawings

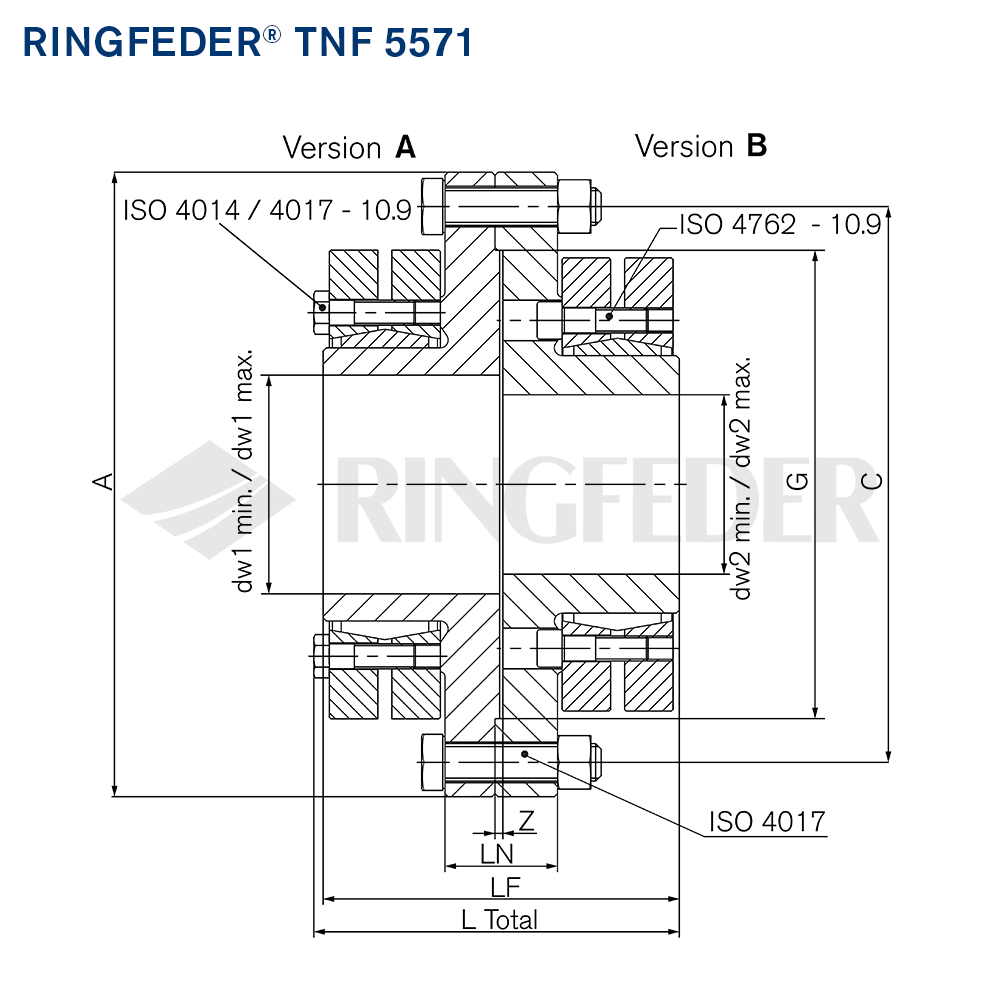

Dimensions Dimensions
Version A Version A
Version B Version B

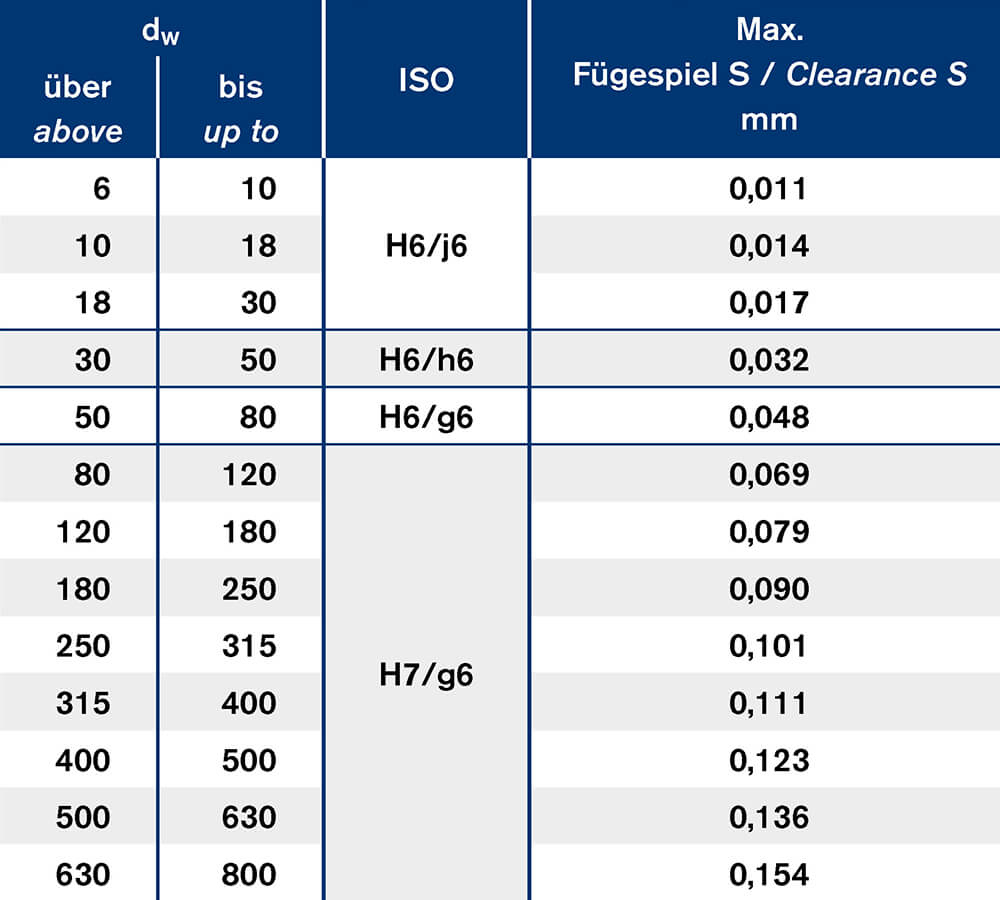

Table Clearance Table Clearance

Technical Data & CAD Models

You require CAD data for this TNF type? Of course, we are more than happy to provide you with these. Contact us quickly and easily via our request form, by e-mail or using the "Need Help?" feature at the bottom right of this site.

CAD
Size
dw1
mm
A
mm
C
mm
G
mm
LF
mm
Ltotal
mm
Z
mm
T
Nm
nSc3
Stück
DG3
mm
TA3
Nm
075 70 240 210 170 136 147 4 6980 6 16 210
075 75 240 210 170 136 147 4 7600 6 16 210
075 80 240 210 170 136 147 4 9100 6 16 210
090 70 305 265 215 160 169 5 6980 6 20 420
090 75 305 265 215 160 169 5 7600 6 20 420
090 80 305 265 215 160 169 5 9100 6 20 420
090 >80 305 265 215 160 169 5 9250 6 20 420
090 90 305 265 215 160 169 5 13100 6 20 420
090 100 305 265 215 160 169 5 17850 6 20 420
100 90 340 286 230 190 197 5 13700 5 24 720
100 95 340 286 230 190 197 5 15800 5 24 720
100 100 340 286 230 190 197 5 18200 5 24 720
100 >100 340 286 230 190 197 5 17550 5 24 720
100 110 340 286 230 190 197 5 22900 5 24 720
100 115 340 286 230 190 197 5 25830 5 24 720
120 95 400 356 300 228 240 5 15100 8 24 720
120 105 400 356 300 228 240 5 20000 8 24 720
120 115 400 356 300 228 240 5 25850 8 24 720
120 >115 400 356 300 228 240 5 31450 8 24 720
120 125 400 356 300 228 240 5 39400 8 24 720
120 135 400 356 300 228 240 5 49450 8 24 720
130 115 400 356 300 228 240 5 31450 8 24 720
130 125 400 356 300 228 240 5 39400 8 24 720
130 135 400 356 300 228 240 5 49450 8 24 720
130 >135 400 356 300 228 240 5 45500 8 24 720
130 137,5 400 356 300 228 240 5 47550 8 24 720
130 140 400 356 300 228 240 5 49700 8 24 720
150 125 475 420 350 278 290 6 36650 10 30 1450
150 130 475 420 350 278 290 6 41550 10 30 1450
150 140 475 420 350 278 290 6 49700 10 30 1450
150 >140 475 420 350 278 290 6 65950 10 30 1450
150 150 475 420 350 278 290 6 77600 10 30 1450
150 165 475 420 350 278 290 6 96900 10 30 1450
165 140 510 440 370 314 326 6 65950 14 30 1450
165 150 510 440 370 314 326 6 77600 14 30 1450
165 165 510 440 370 314 326 6 96900 14 30 1450
165 >165 510 440 370 314 326 6 103200 14 30 1450
165 170 510 440 370 314 326 6 110650 14 30 1450
165 180 510 440 370 314 326 6 126450 14 30 1450
180 160 540 475 405 322 339 6 96000 16 30 1450
180 170 540 475 405 322 339 6 110650 16 30 1450
180 180 540 475 405 322 339 6 126450 16 30 1450
180 >180 540 475 405 322 339 6 141450 16 30 1450
180 190 540 475 405 322 339 6 160350 16 30 1450
180 200 540 475 405 322 339 6 180550 16 30 1450
200 170 560 500 430 368 383 8 123800 16 30 1450
200 185 560 500 430 368 383 8 150750 16 30 1450
200 200 560 500 430 368 383 8 180550 16 30 1450
200 >200 560 500 430 368 383 8 190250 16 30 1450
200 210 560 500 430 368 383 8 212900 16 30 1450
200 220 560 500 430 368 383 8 236850 16 30 1450
220 190 590 530 460 392 407 8 169000 18 30 1450
220 205 590 530 460 392 407 8 201400 18 30 1450
220 220 590 530 460 392 407 8 236850 18 30 1450
220 >220 590 530 460 392 407 8 246450 18 30 1450
220 230 590 530 460 392 407 8 272850 18 30 1450
220 240 590 530 460 392 407 8 300700 18 30 1450
240 210 615 555 485 408 423 8 221450 20 30 1450
240 225 615 555 485 408 423 8 259450 20 30 1450
240 240 615 555 485 408 423 8 300700 20 30 1450
240 >240 615 555 485 408 423 8 310550 20 30 1450
240 250 615 555 485 408 423 8 340750 20 30 1450
240 260 615 555 485 408 423 8 370700 20 30 1450
260 230 710 640 570 450 465 8 281850 24 30 1450
260 245 710 640 570 450 465 8 325450 24 30 1450
260 260 710 640 570 450 465 8 370700 24 30 1450
260 >260 710 640 570 450 465 8 425800 24 30 1450
260 275 710 640 570 450 465 8 483200 24 30 1450
260 290 710 640 570 450 465 8 544550 24 30 1450
290 230 720 660 590 450 465 8 326000 24 30 1450
290 260 720 660 590 450 465 8 425800 24 30 1450
290 290 720 660 590 450 465 8 544550 24 30 1450
290 >290 720 660 590 450 465 8 505800 24 30 1450
290 305 720 660 590 450 465 8 566900 24 30 1450
290 320 720 660 590 450 465 8 569800 24 30 1450
310 280 805 735 660 484 490 8 467100 28 30 1450
310 300 805 735 660 484 490 8 546100 28 30 1450
310 320 805 735 660 484 490 8 629900 28 30 1450
310 >320 805 735 660 484 490 8 719550 28 30 1450
310 330 805 735 660 484 490 8 740000 28 30 1450
310 340 805 735 660 484 490 8 740000 28 30 1450
340 300 835 770 690 528 538 10 626200 30 30 1450
340 320 835 770 690 528 538 10 719550 30 30 1450
340 340 835 770 690 528 538 10 823800 30 30 1450
340 >340 835 770 690 528 538 10 830950 30 30 1450
340 350 835 770 690 528 538 10 830950 30 30 1450
340 360 835 770 690 528 538 10 830950 30 30 1450
380 330 920 845 770 556 574 10 803900 35 30 1450
380 345 920 845 770 556 574 10 887950 35 30 1450
380 360 920 845 770 556 574 10 976450 35 30 1450
380 >360 920 845 770 556 574 10 1022500 35 30 1450
380 375 920 845 770 556 574 10 1050000 35 30 1450
380 390 920 845 770 556 574 10 1050000 35 30 1450
410 360 1030 940 850 618 628 12 1022500 32 36 2400
410 375 1030 940 850 618 628 12 1119450 32 36 2400
410 390 1030 940 850 618 628 12 1221000 32 36 2400
410 >390 1030 940 850 618 628 12 1238150 32 36 2400
410 410 1030 940 850 618 628 12 1346650 32 36 2400
410 430 1030 940 850 618 628 12 1530600 32 36 2400
440 400 1100 1000 900 696 694 14 1309350 36 36 2400
440 415 1100 1000 900 696 694 14 1414300 36 36 2400
440 430 1100 1000 900 696 694 14 1530600 36 36 2400
440 >430 1100 1000 900 696 694 14 1788450 36 36 2400
440 445 1100 1000 900 696 694 14 1884500 36 36 2400
440 460 1100 1000 900 696 694 14 1884500 36 36 2400
470 430 1180 1080 980 744 748 14 1788450 40 36 2400
470 445 1180 1080 980 744 748 14 1929000 40 36 2400
470 460 1180 1080 980 744 748 14 2075350 40 36 2400
470 >460 1180 1080 980 744 748 14 2198000 40 36 2400
470 480 1180 1080 980 744 748 14 2261400 40 36 2400
470 500 1180 1080 980 744 748 14 2261400 40 36 2400
500 470 1210 1110 1020 744 748 14 2304000 42 36 2400
500 485 1210 1110 1020 744 748 14 2440400 42 36 2400
500 500 1210 1110 1020 744 748 14 2440400 42 36 2400
500 >500 1210 1110 1020 744 748 14 2440400 42 36 2400
500 520 1210 1110 1020 744 748 14 2440400 42 36 2400
500 540 1210 1110 1020 744 748 14 2440400 42 36 2400
CAD Size
 		dw1
inch 		A
inch 		C
inch 		G
inch 		LF
inch 		Ltotal
inch 		Z
inch 		T
ft-lbs 		nSc3
pcs. 		DG3
mm 		TA3
ft-lbs
  075 2.756 9.449 8.268 6.693 5.354 5.787 0.157 5148 6 16 155
  075 2.953 9.449 8.268 6.693 5.354 5.787 0.157 5606 6 16 155
  075 3.150 9.449 8.268 6.693 5.354 5.787 0.157 6712 6 16 155
  090 2.756 12.008 10.433 8.465 6.299 6.654 0.197 5148 6 20 310
  090 2.953 12.008 10.433 8.465 6.299 6.654 0.197 5606 6 20 310
  090 3.150 12.008 10.433 8.465 6.299 6.654 0.197 6712 6 20 310
  090 >3.150 12.008 10.433 8.465 6.299 6.654 0.197 6823 6 20 310
  090 3.543 12.008 10.433 8.465 6.299 6.654 0.197 9662 6 20 310
  090 3.937 12.008 10.433 8.465 6.299 6.654 0.197 13166 6 20 310
  100 3.543 13.386 11.260 9.055 7.480 7.756 0.197 10105 5 24 531
  100 3.740 13.386 11.260 9.055 7.480 7.756 0.197 11654 5 24 531
  100 3.937 13.386 11.260 9.055 7.480 7.756 0.197 13424 5 24 531
  100 >3.937 13.386 11.260 9.055 7.480 7.756 0.197 12944 5 24 531
  100 4.331 13.386 11.260 9.055 7.480 7.756 0.197 16890 5 24 531
  100 4.528 13.386 11.260 9.055 7.480 7.756 0.197 19051 5 24 531
  120 3.740 15.748 14.016 11.811 8.976 9.449 0.197 11137 8 24 531
  120 4.134 15.748 14.016 11.811 8.976 9.449 0.197 14751 8 24 531
  120 4.528 15.748 14.016 11.811 8.976 9.449 0.197 19066 8 24 531
  120 >4.528 15.748 14.016 11.811 8.976 9.449 0.197 23197 8 24 531
  120 4.921 15.748 14.016 11.811 8.976 9.449 0.197 29060 8 24 531
  120 5.315 15.748 14.016 11.811 8.976 9.449 0.197 36473 8 24 531
  130 4.528 15.748 14.016 11.811 8.976 9.449 0.197 23197 8 24 531
  130 4.921 15.748 14.016 11.811 8.976 9.449 0.197 29060 8 24 531
  130 5.315 15.748 14.016 11.811 8.976 9.449 0.197 36473 8 24 531
  130 >5.315 15.748 14.016 11.811 8.976 9.449 0.197 33559 8 24 531
  130 5.413 15.748 14.016 11.811 8.976 9.449 0.197 35071 8 24 531
  130 5.512 15.748 14.016 11.811 8.976 9.449 0.197 36657 8 24 531
  150 4.921 18.701 16.535 13.780 10.945 11.417 0.236 27032 10 30 1069
  150 5.118 18.701 16.535 13.780 10.945 11.417 0.236 30646 10 30 1069
  150 5.512 18.701 16.535 13.780 10.945 11.417 0.236 36657 10 30 1069
  150 >5.512 18.701 16.535 13.780 10.945 11.417 0.236 48643 10 30 1069
  150 5.906 18.701 16.535 13.780 10.945 11.417 0.236 57235 10 30 1069
  150 6.496 18.701 16.535 13.780 10.945 11.417 0.236 71471 10 30 1069
  165 5.512 20.079 17.323 14.567 12.362 12.835 0.236 48643 14 30 1069
  165 5.906 20.079 17.323 14.567 12.362 12.835 0.236 57235 14 30 1069
  165 6.496 20.079 17.323 14.567 12.362 12.835 0.236 71471 14 30 1069
  165 >6.496 20.079 17.323 14.567 12.362 12.835 0.236 76117 14 30 1069
  165 6.693 20.079 17.323 14.567 12.362 12.835 0.236 81612 14 30 1069
  165 7.087 20.079 17.323 14.567 12.362 12.835 0.236 93266 14 30 1069
  180 6.299 21.260 18.701 15.945 12.677 13.346 0.236 70807 16 30 1069
  180 6.693 21.260 18.701 15.945 12.677 13.346 0.236 81612 16 30 1069
  180 7.087 21.260 18.701 15.945 12.677 13.346 0.236 93266 16 30 1069
  180 >7.087 21.260 18.701 15.945 12.677 13.346 0.236 104329 16 30 1069
  180 7.480 21.260 18.701 15.945 12.677 13.346 0.236 118269 16 30 1069
  180 7.874 21.260 18.701 15.945 12.677 13.346 0.236 133168 16 30 1069
  200 6.693 22.047 19.685 16.929 14.488 15.079 0.315 91311 16 30 1069
  200 7.283 22.047 19.685 16.929 14.488 15.079 0.315 111189 16 30 1069
  200 7.874 22.047 19.685 16.929 14.488 15.079 0.315 133168 16 30 1069
  200 >7.874 22.047 19.685 16.929 14.488 15.079 0.315 140323 16 30 1069
  200 8.268 22.047 19.685 16.929 14.488 15.079 0.315 157029 16 30 1069
  200 8.661 22.047 19.685 16.929 14.488 15.079 0.315 174693 16 30 1069
  220 7.480 23.228 20.866 18.110 15.433 16.024 0.315 124649 18 30 1069
  220 8.071 23.228 20.866 18.110 15.433 16.024 0.315 148547 18 30 1069
  220 8.661 23.228 20.866 18.110 15.433 16.024 0.315 174693 18 30 1069
  220 >8.661 23.228 20.866 18.110 15.433 16.024 0.315 181774 18 30 1069
  220 9.055 23.228 20.866 18.110 15.433 16.024 0.315 201246 18 30 1069
  220 9.449 23.228 20.866 18.110 15.433 16.024 0.315 221787 18 30 1069
  240 8.268 24.213 21.850 19.094 16.063 16.654 0.315 163335 20 30 1069
  240 8.858 24.213 21.850 19.094 16.063 16.654 0.315 191363 20 30 1069
  240 9.449 24.213 21.850 19.094 16.063 16.654 0.315 221787 20 30 1069
  240 >9.449 24.213 21.850 19.094 16.063 16.654 0.315 229052 20 30 1069
  240 9.843 24.213 21.850 19.094 16.063 16.654 0.315 251327 20 30 1069
  240 10.236 24.213 21.850 19.094 16.063 16.654 0.315 273417 20 30 1069
  260 9.055 27.953 25.197 22.441 17.717 18.307 0.315 207884 24 30 1069
  260 9.646 27.953 25.197 22.441 17.717 18.307 0.315 240042 24 30 1069
  260 10.236 27.953 25.197 22.441 17.717 18.307 0.315 273417 24 30 1069
  260 >10.236 27.953 25.197 22.441 17.717 18.307 0.315 314057 24 30 1069
  260 10.827 27.953 25.197 22.441 17.717 18.307 0.315 356394 24 30 1069
  260 11.417 27.953 25.197 22.441 17.717 18.307 0.315 401644 24 30 1069
  290 9.055 28.346 25.984 23.228 17.717 18.307 0.315 240448 24 30 1069
  290 10.236 28.346 25.984 23.228 17.717 18.307 0.315 314057 24 30 1069
  290 11.417 28.346 25.984 23.228 17.717 18.307 0.315 401644 24 30 1069
  290 >11.417 28.346 25.984 23.228 17.717 18.307 0.315 373063 24 30 1069
  290 12.008 28.346 25.984 23.228 17.717 18.307 0.315 418128 24 30 1069
  290 12.598 28.346 25.984 23.228 17.717 18.307 0.315 420267 24 30 1069
  310 11.024 31.693 28.937 25.984 19.055 19.291 0.315 344519 28 30 1069
  310 11.811 31.693 28.937 25.984 19.055 19.291 0.315 402787 28 30 1069
  310 12.598 31.693 28.937 25.984 19.055 19.291 0.315 464595 28 30 1069
  310 >12.598 31.693 28.937 25.984 19.055 19.291 0.315 530718 28 30 1069
  310 12.992 31.693 28.937 25.984 19.055 19.291 0.315 545802 28 30 1069
  310 13.386 31.693 28.937 25.984 19.055 19.291 0.315 545802 28 30 1069
  340 11.811 32.874 30.315 27.165 20.787 21.181 0.394 461866 30 30 1069
  340 12.598 32.874 30.315 27.165 20.787 21.181 0.394 530718 30 30 1069
  340 13.386 32.874 30.315 27.165 20.787 21.181 0.394 607610 30 30 1069
  340 >13.386 32.874 30.315 27.165 20.787 21.181 0.394 612884 30 30 1069
  340 13.780 32.874 30.315 27.165 20.787 21.181 0.394 612884 30 30 1069
  340 14.173 32.874 30.315 27.165 20.787 21.181 0.394 612884 30 30 1069
  380 12.992 36.220 33.268 30.315 21.890 22.598 0.394 592933 35 30 1069
  380 13.583 36.220 33.268 30.315 21.890 22.598 0.394 654925 35 30 1069
  380 14.173 36.220 33.268 30.315 21.890 22.598 0.394 720200 35 30 1069
  380 >14.173 36.220 33.268 30.315 21.890 22.598 0.394 754165 35 30 1069
  380 14.764 36.220 33.268 30.315 21.890 22.598 0.394 774449 35 30 1069
  380 15.354 36.220 33.268 30.315 21.890 22.598 0.394 774449 35 30 1069
  410 14.173 40.551 37.008 33.465 24.331 24.724 0.472 754165 32 36 1770
  410 14.764 40.551 37.008 33.465 24.331 24.724 0.472 825673 32 36 1770
  410 15.354 40.551 37.008 33.465 24.331 24.724 0.472 900573 32 36 1770
  410 >15.354 40.551 37.008 33.465 24.331 24.724 0.472 913222 32 36 1770
  410 16.142 40.551 37.008 33.465 24.331 24.724 0.472 993249 32 36 1770
  410 16.929 40.551 37.008 33.465 24.331 24.724 0.472 1128925 32 36 1770
  440 15.748 43.307 39.370 35.433 27.402 27.323 0.551 965737 36 36 1770
  440 16.339 43.307 39.370 35.433 27.402 27.323 0.551 1043145 36 36 1770
  440 16.929 43.307 39.370 35.433 27.402 27.323 0.551 1128925 36 36 1770
  440 >16.929 43.307 39.370 35.433 27.402 27.323 0.551 1319107 36 36 1770
  440 17.520 43.307 39.370 35.433 27.402 27.323 0.551 1389951 36 36 1770
  440 18.110 43.307 39.370 35.433 27.402 27.323 0.551 1389951 36 36 1770
  470 16.929 46.457 42.520 38.583 29.291 29.449 0.551 1319107 40 36 1770
  470 17.520 46.457 42.520 38.583 29.291 29.449 0.551 1422773 40 36 1770
  470 18.110 46.457 42.520 38.583 29.291 29.449 0.551 1530716 40 36 1770
  470 >18.110 46.457 42.520 38.583 29.291 29.449 0.551 1621179 40 36 1770
  470 18.898 46.457 42.520 38.583 29.291 29.449 0.551 1667941 40 36 1770
  470 19.685 46.457 42.520 38.583 29.291 29.449 0.551 1667941 40 36 1770
  500 18.504 47.638 43.701 40.157 29.291 29.449 0.551 1699361 42 36 1770
  500 19.094 47.638 43.701 40.157 29.291 29.449 0.551 1799966 42 36 1770
  500 19.685 47.638 43.701 40.157 29.291 29.449 0.551 1799966 42 36 1770
  500 >19.685 47.638 43.701 40.157 29.291 29.449 0.551 1799966 42 36 1770
  500 20.472 47.638 43.701 40.157 29.291 29.449 0.551 1799966 42 36 1770
  500 21.260 47.638 43.701 40.157 29.291 29.449 0.551 1799966 42 36 1770

Flange Couplings RINGFEDER® TNF – Backlash-Free, Robust, Easy Assembling and Maintenance

Learn more about application and functionality of our premium-quality, high-performance Flange Couplings RINGFEDER® TNF 5571 in our short video.

More Videos
Flange Couplings RINGFEDER® TNF – Backlash-Free, Robust, Easy Assembling and Maintenance

Downloads
Product Paper Flange Couplings RINGFEDER® TNF

Product Paper Flange Couplings RINGFEDER® TNF

EN English DE German
Tech Paper Flange Couplings RINGFEDER® TNF 5571

Tech Paper Flange Couplings RINGFEDER® TNF 5571

EN English DE German
Instruction Manual Flange Couplings RINGFEDER® TNF 5571

Instruction Manual Flange Couplings RINGFEDER® TNF 5571

DE German EN English

Further downloads including certificates, instruction manuals and product images are available to you in our Download Center:

Downloads

Suitable Industry Solutions

Cement
Steel
Material Handling
Pulp & Paper
Refining
Gearboxes
Cranes & Hoists
Mining

Your Contact to Us

You like to receive an offer, have specific questions, require technical support or you are interested in a customized solution? Our experts in Engineering and Sales are more than happy to assist you. We look forward to your inquiry! Because excellent solutions always start with excellent guidance.

Contact us quickly and easily via our request form, by e-mail or telephone, or also using the "Need Help?" feature at the bottom right of this site.

Request
Directly Contact Our Experts in Engineering & Sales | RINGFEDER®
Solutions for Construction Machinery | RINGFEDER®
Change the CAPTCHA code
