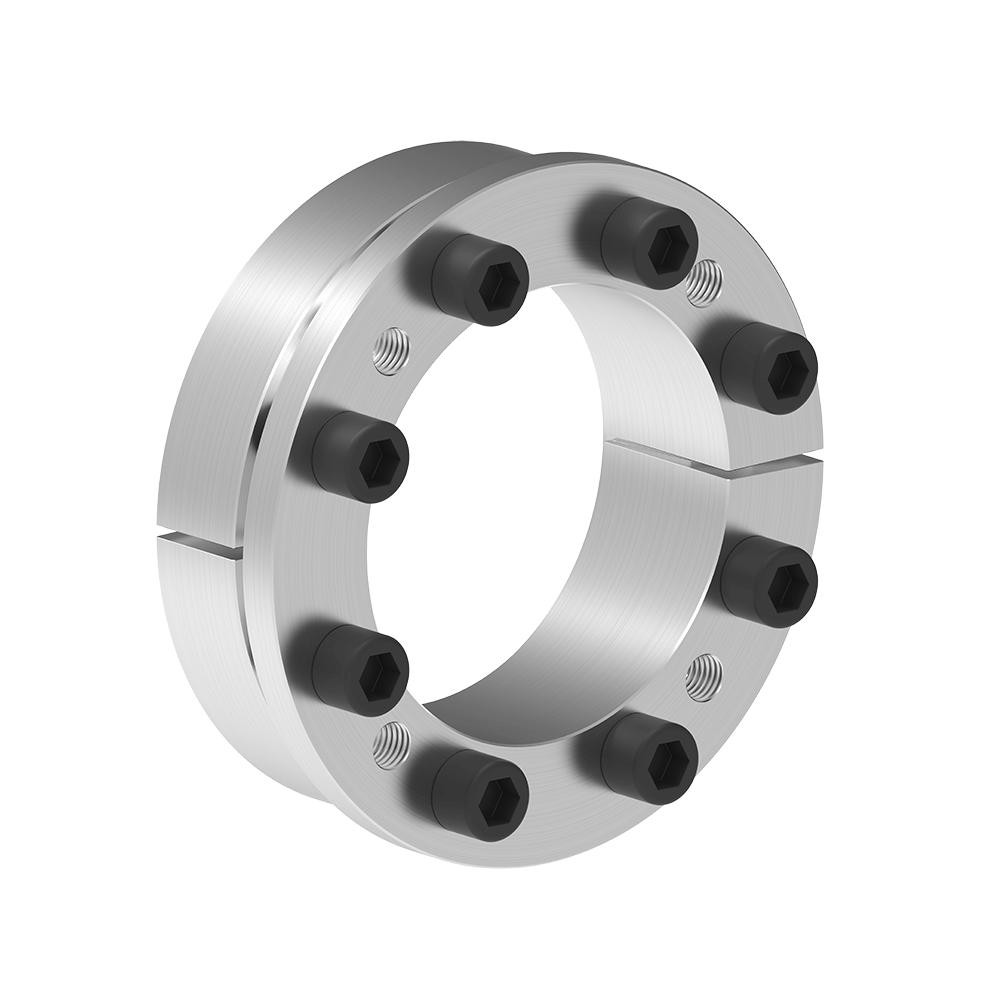

Locking Assemblies RfN 7006 | RINGFEDER®

Two piece design with single taper has flange to position the component on the shaft to maintain axial position during mounting.

ℹ This series is also available in true inch sizes.

Request
Data & CAD
Downloads

Product Characteristics

Has all positive features of series 7003. However, through the bigger flange diameter an axial displacement of the hub during mounting is averted. Is also applied with belt pulleys.

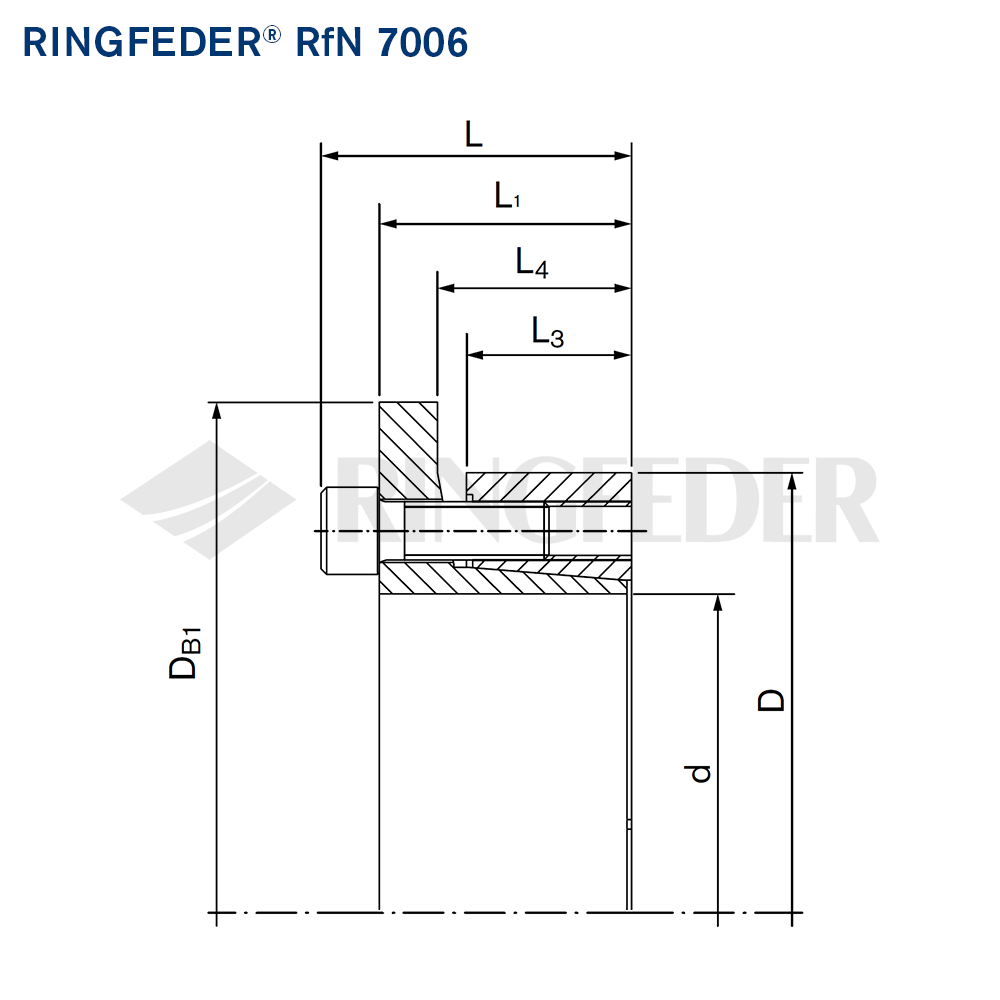

Explanations

  • L = Overall width
  • L1 = Overall width (without screws)
  • L4 = Installation length up to colar
  • L3 = Clamping length
  • D1 = Collar outer diameter
  • d = Inner ring diameter
  • D = Outer diameter

360° Product View

Tap and rotate the XR Model below and experience RINGFEDER® RfN 7006 in an interactive, touch-enabled 360° Product View. To access full-screen mode on your laptop or desktop device, simply double-click on the product.

Technical Data & CAD Models

Download of CAD data is available to you after login with your personal Customer or Distributor Account. You do not have an account yet? Register here without any costs or obligations.

CAD
d
mm
D
mm
L
mm
L1
mm
L4
mm
T
Nm
pW
N/mm2
pN
N/mm2
DG
mm
TA
Nm
SAP-ID
19 47 34 28 23 270 234 94 6 17
20 47 34 28 23 284 222 94 6 17
22 47 34 28 23 313 202 94 6 17
24 50 34 28 23 410 222 106 6 17
25 50 34 28 23 427 213 106 6 17
28 55 34 28 23 478 190 97 6 17
30 55 34 28 23 512 177 97 6 17
32 60 34 28 23 728 222 118 6 17
35 60 34 28 23 796 203 118 6 17
38 65 34 28 23 865 187 109 6 17
40 65 34 28 23 910 177 109 6 17
42 75 41 33 26 1520 229 128 8 41
45 75 41 33 26 1629 213 128 8 41
50 80 41 33 26 1810 192 120 8 41
55 85 41 33 26 2275 200 129 8 41
60 90 41 33 26 2482 183 122 8 41
65 95 41 33 26 3025 190 130 8 41
70 110 50 40 32 4735 214 135 10 83
75 115 50 40 32 5018 197 129 10 83
80 120 50 40 32 5352 185 123 10 83
85 125 50 40 32 5979 183 124 10 83
90 130 50 40 32 6774 185 128 10 83
95 135 50 40 32 7945 195 137 10 83
100 145 56 44 34 10005 204 141 12 145
110 155 56 44 34 11006 186 132 12 145
120 165 56 44 34 13507 191 139 12 145
130 180 64 52 42 19511 180 130 12 145
140 190 68 54 42 21515 171 126 14 230
150 200 68 54 42 25613 178 133 14 230
160 210 68 54 42 30052 183 140 14 230
170 225 78 64 52 34833 145 110 14 230
180 235 78 64 52 36882 137 105 14 230
190 250 78 64 52 48664 163 124 14 230
200 260 78 64 52 51225 154 119 14 230
220 285 91 75 59 61581 135 104 16 355
240 305 91 75 59 83975 155 122 16 355
260 325 91 75 59 97037 152 122 16 355
280 355 105 87 69 124441 140 111 18 485
300 375 102 84 66 149908 147 118 18 485
320 405 121 101 81 208733 146 115 20 690
340 425 121 101 81 258742 160 128 20 690
360 455 138 115 93 290014 138 109 22 930
380 475 138 115 93 357147 153 122 22 930
400 495 138 115 93 375945 145 117 22 930
CAD d
inch 		D
inch 		L
inch 		L1
inch 		L4
inch 		T
ft-lbs 		Fax
lbs 		pW
psi 		pN
psi 		DG
mm 		TA
ft-lbs
  3/4 1.850 1.339 1.102 0.906 200 6290 31160 13500 6 13
  7/8 1.850 1.339 1.102 0.906 230 6290 28400 13500 6 13
  1 1.969 1.339 1.102 0.906 325 7640 30400 15500 6 13
  1 1/8 2.165 1.339 1.102 0.906 360 7640 28400 14200 6 13
  1 3/16 2.165 1.339 1.102 0.906 390 7640 27000 14200 6 13
  1 1/4 2.362 1.339 1.102 0.906 555 10300 30400 16200 6 13
  1 3/8 2.362 1.339 1.102 0.906 605 10300 27000 16200 6 13
  1 7/16 2.559 1.339 1.102 0.906 625 10300 28700 15900 6 13
  1 1/2 2.559 1.339 1.102 0.906 655 10300 27700 15900 6 13
  1 5/8 2.953 1.614 1.299 1.063 1180 15700 34900 19100 8 30
  1 3/4 2.953 1.614 1.299 1.063 1270 15700 32600 19100 8 30
  1 7/8 2.953 1.614 1.299 1.063 1330 15700 31200 18400 8 30
  1 15/16 3.150 1.614 1.299 1.063 1390 16600 29700 18400 8 30
  2 3.150 1.614 1.299 1.063 1390 16600 29200 18400 8 30
  2 1/8 3.346 1.614 1.299 1.063 1730 17100 31000 19100 8 30
  2 3/16 3.346 1.614 1.299 1.063 1770 17100 30400 19100 8 30
  2 1/4 3.543 1.614 1.299 1.063 1860 17100 28300 17700 8 30
  2 3/8 3.543 1.614 1.299 1.063 1950 17100 27000 17700 8 30
  2 7/16 3.740 1.614 1.299 1.063 2230 18000 29800 19100 8 30
  2 1/2 3.740 1.614 1.299 1.063 2290 18000 29100 19100 8 30
  2 9/16 3.740 1.614 1.299 1.063 2350 18000 28400 19100 8 30
  2 11/16 4.331 1.969 1.575 1.260 3530 29200 32000 19900 10 61
  2 3/4 4.331 1.969 1.575 1.260 3620 29200 31200 19900 10 61
  2 7/8 4.528 1.969 1.575 1.260 3690 29200 29000 18400 10 61
  2 15/16 4.528 1.969 1.575 1.260 3800 29200 28300 18400 10 61
  3 4.724 1.969 1.575 1.260 4050 29200 26800 17700 10 61
  3 1/4 4.921 1.969 1.575 1.260 4730 31500 29100 19100 10 61
  3 3/8 4.921 1.969 1.575 1.260 4880 31500 28300 19100 10 61
  3 7/16 5.118 1.969 1.575 1.260 4980 31500 27600 18400 10 61
  3 1/2 5.118 1.969 1.575 1.260 5130 31500 26800 18400 10 61
  3 3/4 5.315 1.969 1.575 1.260 6040 36000 28300 19900 10 61
  3 15/16 5.709 2.205 1.732 1.339 7450 38200 29700 21000 12 107
  4 5.709 2.205 1.732 1.339 7560 38200 29200 21000 12 107
  4 7/16 6.102 2.205 1.732 1.339 8110 38200 27500 19600 12 107
  4 3/4 6.496 2.205 1.732 1.339 10000 45000 29700 20600 12 107
  4 15/16 7.087 2.520 2.047 1.654 13400 56200 27900 19900 12 107
  5 7.087 2.520 2.047 1.654 14000 56200 27000 19900 12 107
  5 7/16 7.480 2.677 2.126 1.654 16100 60700 25700 18400 14 170
  5 15/16 7.874 2.677 2.126 1.654 18900 71900 26800 19900 14 170
  6 7/16 8.858 3.071 2.520 2.087 22300 76400 20300 15200 14 170
  6 15/16 9.252 3.071 2.520 2.087 23600 76400 19600 15200 14 170
