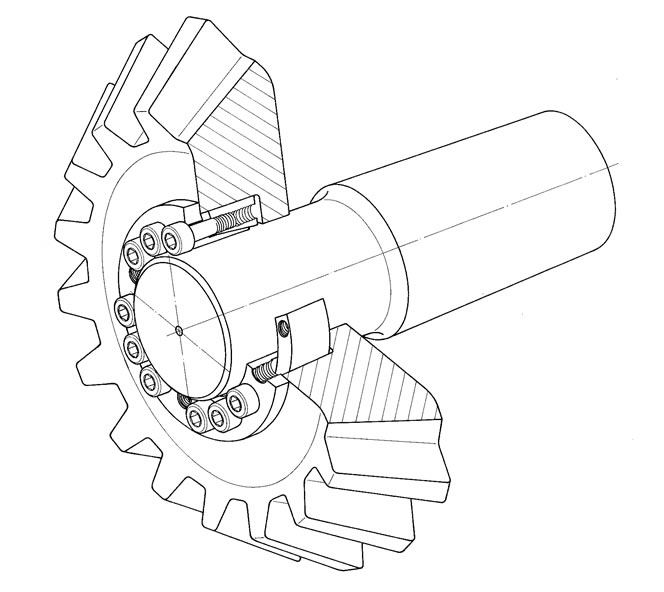

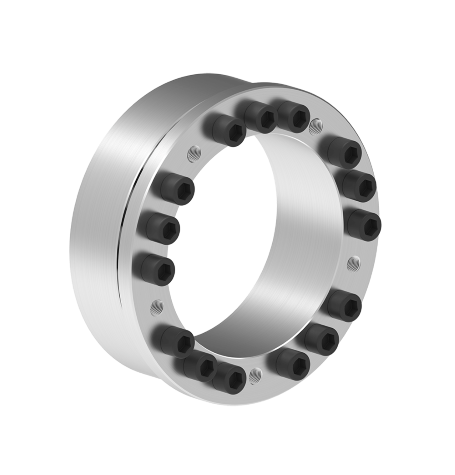

These flange type units fix the hub positively against their extended flange preventing axial movement during tightening. Applied wherever self-centering action and good concentricity of mounted components are essential and hubs with straight-thru bores are used. Available sizes: Metric series shafts from 20 mm to 150 mm dia. and Inch series for shafts from 1” to 4” diameter.
ℹ This series is also available in true inch sizes.
CAD |

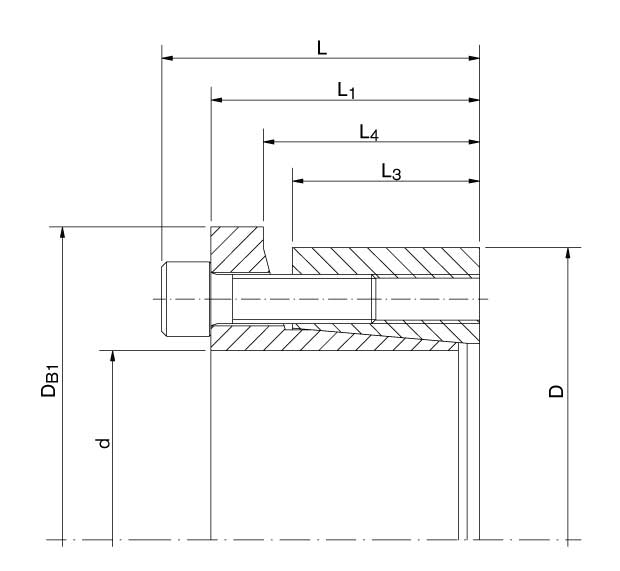

d
mm |
D
mm |
DB1
mm |
L
mm |
L1
mm |
L4
mm |
T
Nm |
pW
N/mm2 |
pN
N/mm2 |
TA
Nm |

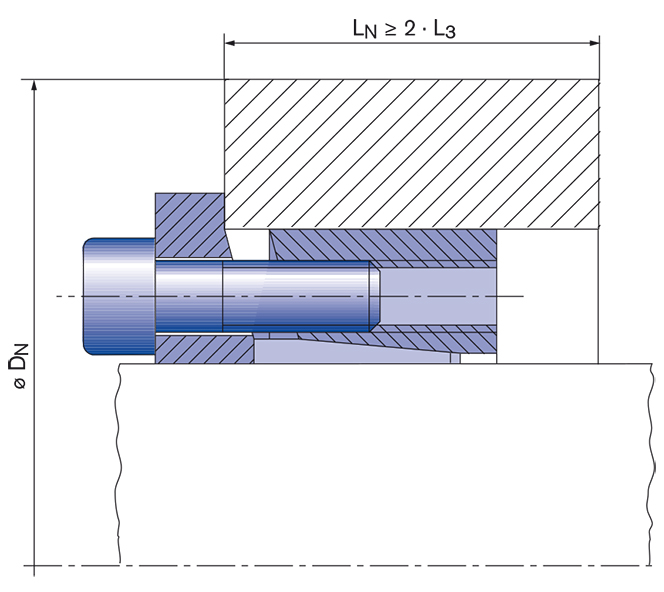

DN min bei Rp0,2 400 N/mm2
mm |
Tmax
Nm |
---|---|---|---|---|---|---|---|---|---|---|---|---|
19 | 47 | 53 | 37 | 31 | 25,7 | 285 | 300 | 90 | 17 | 57 | 310 | |
20 | 47 | 53 | 37 | 31 | 25,7 | 300 | 290 | 90 | 17 | 57 | 330 | |
22 | 47 | 53 | 37 | 31 | 25,7 | 330 | 260 | 90 | 17 | 57 | 360 | |
24 | 50 | 56 | 37 | 31 | 25,7 | 420 | 300 | 110 | 17 | 63 | 460 | |
25 | 50 | 56 | 37 | 31 | 25,7 | 440 | 290 | 110 | 17 | 63 | 480 | |
28 | 55 | 62 | 37 | 31 | 25,7 | 490 | 260 | 100 | 17 | 68 | 530 | |
30 | 55 | 62 | 37 | 31 | 25,7 | 530 | 240 | 100 | 17 | 68 | 580 | |
32 | 60 | 68 | 37 | 31 | 25,7 | 740 | 270 | 110 | 17 | 75 | 810 | |
35 | 60 | 68 | 37 | 31 | 25,7 | 810 | 250 | 110 | 17 | 75 | 890 | |
38 | 65 | 73 | 37 | 31 | 25,7 | 890 | 230 | 100 | 17 | 80 | 970 | |
40 | 65 | 73 | 37 | 31 | 25,7 | 940 | 220 | 100 | 17 | 80 | 1030 | |
42 | 75 | 83 | 46 | 38 | 30,3 | 1730 | 300 | 130 | 41 | 100 | 1900 | |
45 | 75 | 83 | 46 | 38 | 30,3 | 1860 | 280 | 130 | 41 | 100 | 2040 | |
48 | 80 | 88 | 46 | 38 | 30,3 | 1980 | 270 | 130 | 41 | 105 | 2170 | |
50 | 80 | 88 | 46 | 38 | 30,3 | 2070 | 260 | 130 | 41 | 105 | 2270 | |
55 | 85 | 95 | 46 | 38 | 30,3 | 2540 | 270 | 140 | 41 | 114 | 2790 | |
60 | 90 | 100 | 46 | 38 | 30,3 | 2770 | 250 | 130 | 41 | 118 | 3040 | |
65 | 95 | 105 | 46 | 38 | 30,3 | 3580 | 260 | 140 | 41 | 128 | 3930 | |
70 | 110 | 120 | 60 | 50 | 40,4 | 5100 | 240 | 130 | 83 | 144 | 5610 | |
75 | 115 | 125 | 60 | 50 | 40,4 | 5460 | 230 | 120 | 83 | 148 | 6000 | |
80 | 120 | 130 | 60 | 50 | 40,4 | 5850 | 210 | 110 | 83 | 152 | 6430 | |
85 | 125 | 135 | 60 | 50 | 40,4 | 7450 | 230 | 130 | 83 | 164 | 8190 | |
90 | 130 | 140 | 60 | 50 | 40,4 | 7900 | 220 | 120 | 83 | 168 | 8690 | |
95 | 135 | 145 | 60 | 50 | 40,4 | 9900 | 260 | 150 | 83 | 185 | 10890 | |
100 | 145 | 155 | 68 | 58 | 47,8 | 11000 | 190 | 110 | 83 | 184 | 12100 | |
110 | 155 | 165 | 68 | 58 | 47,8 | 12100 | 180 | 110 | 83 | 194 | 13310 | |
120 | 165 | 175 | 68 | 58 | 47,8 | 15700 | 190 | 120 | 83 | 212 | 17270 | |
130 | 180 | 190 | 77 | 65 | 52,4 | 20700 | 190 | 120 | 145 | 231 | 22770 | |
140 | 190 | 200 | 77 | 65 | 52,4 | 22500 | 180 | 110 | 145 | 241 | 24750 | |
150 | 200 | 210 | 77 | 65 | 52,4 | 28500 | 200 | 130 | 145 | 262 | 31350 |
CAD |
d inch |
D inch |
DB1 inch |
L inch |
L1 inch |
L4 inch |
T ft-lbs |
pW psi |
pN psi |
TA ft-lbs |
DN min bei Rp0,2 400 N/mm2 inch |
---|---|---|---|---|---|---|---|---|---|---|---|
1 | 1.969 | 2.205 | 1.457 | 1.220 | 1.012 | 323 | 40170 | 15070 | 13 | 2.398 | |
1 3/16 | 2.165 | 2.441 | 1.457 | 1.220 | 1.012 | 385 | 33800 | 13650 | 13 | 2.587 | |
1 1/4 | 2.362 | 2.677 | 1.457 | 1.220 | 1.012 | 531 | 38560 | 15070 | 13 | 2.876 | |
1 3/8 | 2.362 | 2.677 | 1.457 | 1.220 | 1.012 | 585 | 35055 | 15070 | 13 | 2.876 | |
1 7/16 | 2.559 | 2.874 | 1.457 | 1.220 | 1.012 | 620 | 33495 | 13935 | 13 | 3.069 | |
1 1/2 | 2.559 | 2.874 | 1.457 | 1.220 | 1.012 | 647 | 32100 | 13935 | 13 | 3.069 | |
1 5/8 | 2.953 | 3.268 | 1.811 | 1.496 | 1.193 | 1234 | 43870 | 19055 | 30 | 3.796 | |
1 3/4 | 2.953 | 3.268 | 1.811 | 1.496 | 1.193 | 1329 | 40740 | 19055 | 30 | 3.796 | |
1 7/8 | 3.150 | 3.465 | 1.811 | 1.496 | 1.193 | 1426 | 38070 | 17915 | 30 | 3.986 | |
1 15/16 | 3.150 | 3.465 | 1.811 | 1.496 | 1.193 | 1473 | 36840 | 17915 | 30 | 3.986 | |
2 | 3.150 | 3.465 | 1.811 | 1.496 | 1.193 | 1521 | 35690 | 17915 | 30 | 3.986 | |
2 1/8 | 3.346 | 3.740 | 1.811 | 1.496 | 1.193 | 1803 | 39125 | 19625 | 30 | 4.335 | |
2 3/16 | 3.346 | 3.740 | 1.811 | 1.496 | 1.193 | 1856 | 38005 | 19625 | 30 | 4.335 | |
2 1/4 | 3.543 | 3.937 | 1.811 | 1.496 | 1.193 | 1908 | 36875 | 18485 | 30 | 4.518 | |
2 3/8 | 3.543 | 3.937 | 1.811 | 1.496 | 1.193 | 2014 | 34935 | 18485 | 30 | 4.518 | |
2 7/16 | 3.740 | 4.134 | 1.811 | 1.496 | 1.193 | 2466 | 38965 | 20050 | 30 | 4.873 | |
2 1/2 | 3.740 | 4.134 | 1.811 | 1.496 | 1.193 | 2530 | 37990 | 20050 | 30 | 4.873 | |
2 9/16 | 3.740 | 4.134 | 1.811 | 1.496 | 1.193 | 2593 | 37065 | 20050 | 30 | 4.873 | |
2 3/4 | 4.331 | 4.724 | 2.362 | 1.969 | 1.591 | 3680 | 34770 | 18200 | 61 | 5.502 | |
2 7/8 | 4.528 | 4.921 | 2.362 | 1.969 | 1.591 | 3845 | 33300 | 16920 | 61 | 5.653 | |
2 15/16 | 4.528 | 4.921 | 2.362 | 1.969 | 1.591 | 3929 | 32590 | 16920 | 61 | 5.653 | |
3 | 4.528 | 4.921 | 2.362 | 1.969 | 1.591 | 4012 | 31910 | 16920 | 61 | 5.653 | |
3 3/8 | 4.921 | 5.315 | 2.362 | 1.969 | 1.591 | 5434 | 32430 | 18345 | 61 | 6.264 | |
3 7/16 | 5.118 | 5.512 | 2.362 | 1.969 | 1.591 | 5543 | 31810 | 17630 | 61 | 6.451 | |
3 1/2 | 5.118 | 5.512 | 2.362 | 1.969 | 1.591 | 5644 | 31240 | 17630 | 61 | 6.451 | |
3 3/4 | 5.315 | 5.709 | 2.362 | 1.969 | 1.591 | 7180 | 36450 | 21190 | 61 | 7.036 | |
3 15/16 | 5.709 | 6.102 | 2.677 | 2.283 | 1.882 | 7957 | 27300 | 16210 | 61 | 7.059 | |
4 | 5.709 | 6.102 | 2.677 | 2.283 | 1.882 | 8083 | 26870 | 16210 | 61 | 7.059 |
The Locking Assemblies are supplied slightly oiled and ready-to-use. The values for T, Fax, pW and pN apply to Locking Assemblies in delivery condition.
For shafts and hub bores Ra = 1,6 μm
We recommend the following mounting tolerances
Shaft: h8; Hub: H8
Arrangement only possible from 2 sides. If several Locking Assemblies are used to increase the transmission values the clamping systematization has to be considered.
A change of the TA-values given in the above table is not admissible.
Product Paper RINGFEDER® Locking Assemblies

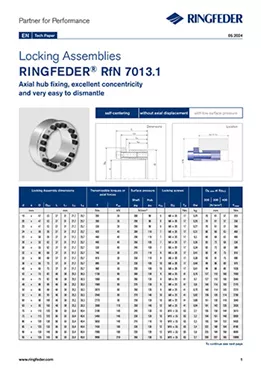

Tech Paper Locking Assemblies RINGFEDER® RfN 7013.1

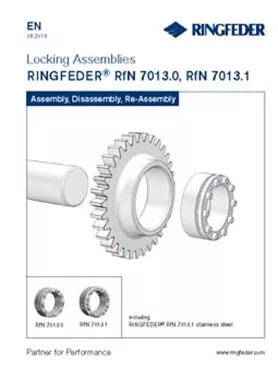

Instruction Manual Locking Assemblies RINGFEDER® RfN 7013.0, RfN 7013.1
