Locking Assemblies RfN 7061

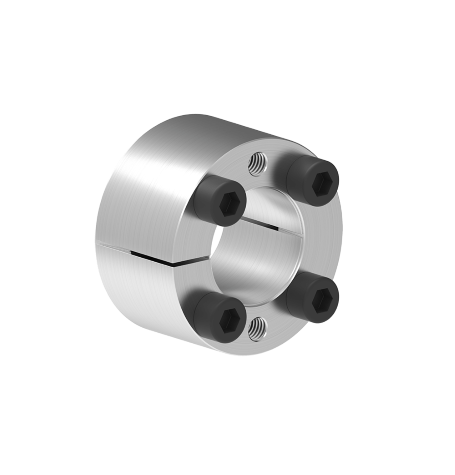

This two piece self-centering design is cost-efficient for medium torque applications. During mounting, slight axial displacement of the hub occurs. Available in very small sizes.
Technical Data & CAD Models
| CAD |
d
mm |
D
mm |
L
mm |
L1
mm |
T
Nm |
Fax
kN |
pW
N/mm2 |
pN
N/mm2 |
TA
Nm |
SAP-ID
|
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 16 | 13,5 | 11 | 6 | 2 | 150 | 55 | 1,2 | ||
| 6,35 | 16 | 13,5 | 11 | 6 | 2 | 140 | 55 | 1,2 | ||
| 7 | 17 | 13,5 | 11 | 8 | 2 | 125 | 55 | 1,2 | ||
| 8 | 18 | 13,5 | 11 | 10 | 2,5 | 110 | 50 | 1,2 | ||
| 9 | 20 | 15,5 | 13 | 15 | 3 | 120 | 55 | 1,2 | ||
| 9,53 | 20 | 15,5 | 13 | 15 | 3 | 110 | 55 | 1,2 | ||
| 10 | 20 | 15,5 | 13 | 15 | 3 | 110 | 55 | 1,2 | ||
| 11 | 22 | 15,5 | 13 | 18 | 3 | 100 | 50 | 1,2 | ||
| 12 | 22 | 15,5 | 13 | 20 | 3 | 90 | 50 | 1,2 | ||
| 14 | 26 | 20 | 17 | 35 | 5 | 105 | 55 | 2,1 | ||
| 15 | 28 | 20 | 17 | 40 | 5 | 100 | 50 | 2,1 | ||
| 16 | 32 | 21 | 17 | 70 | 8 | 130 | 65 | 4,9 | ||
| 17 | 35 | 25 | 21 | 75 | 8 | 120 | 60 | 4,9 | ||
| 18 | 35 | 25 | 21 | 80 | 8 | 115 | 60 | 4,9 | ||
| 19 | 35 | 25 | 21 | 85 | 8 | 110 | 60 | 4,9 | ||
| 20 | 38 | 26 | 21 | 150 | 15 | 140 | 75 | 9,7 | ||
| 22 | 40 | 26 | 21 | 160 | 14 | 130 | 70 | 9.7 | ||
| 24 | 47 | 32 | 26 | 250 | 20 | 140 | 75 | 17 | ||
| 25 | 47 | 32 | 26 | 260 | 20 | 135 | 75 | 17 | ||
| 25,4 | 47 | 32 | 26 | 265 | 20 | 130 | 75 | 17 | ||
| 28 | 50 | 32 | 26 | 440 | 30 | 185 | 100 | 17 | ||
| 30 | 55 | 32 | 26 | 470 | 30 | 175 | 95 | 17 | ||
| 32 | 55 | 32 | 26 | 500 | 30 | 165 | 95 | 17 | ||
| 35 | 60 | 37 | 31 | 730 | 40 | 165 | 95 | 17 | ||
| 38 | 65 | 37 | 31 | 800 | 40 | 155 | 90 | 17 | ||
| 40 | 65 | 37 | 31 | 840 | 40 | 145 | 90 | 17 | ||
| 42 | 75 | 44 | 36 | 1200 | 55 | 165 | 90 | 41 | ||
| 45 | 75 | 44 | 36 | 1300 | 55 | 155 | 90 | 41 | ||
| 48 | 80 | 44 | 36 | 1850 | 75 | 195 | 115 | 41 | ||
| 50 | 80 | 44 | 36 | 1900 | 75 | 185 | 115 | 41 |
| CAD |
d inch |
D inch |
L inch |
L1 inch |
T ft-lbs |
Fax lbs |
pW psi |
pN psi |
TA ft-lbs |
|---|---|---|---|---|---|---|---|---|---|
| 0.236 | 0.630 | 0.531 | 0.433 | 4 | 446 | 21739 | 7971 | 0.9 | |
| 0.250 | 0.630 | 0.531 | 0.433 | 4 | 446 | 20290 | 7971 | 0.9 | |
| 0.276 | 0.669 | 0.531 | 0.433 | 6 | 446 | 18116 | 7971 | 0.9 | |
| 0.315 | 0.709 | 0.531 | 0.433 | 7 | 558 | 15942 | 7246 | 0.9 | |
| 0.354 | 0.787 | 0.610 | 0.512 | 11 | 669 | 17391 | 7971 | 0.9 | |
| 0.375 | 0.787 | 0.610 | 0.512 | 11 | 669 | 15950 | 7971 | 0.9 | |
| 0.394 | 0.787 | 0.610 | 0.512 | 11 | 669 | 15942 | 7971 | 0.9 | |
| 0.433 | 0.866 | 0.610 | 0.512 | 13 | 669 | 14493 | 7246 | 0.9 | |
| 0.472 | 0.866 | 0.610 | 0.512 | 15 | 669 | 13043 | 7246 | 0.9 | |
| 0.551 | 1.024 | 0.787 | 0.669 | 26 | 1116 | 15217 | 7971 | 1.5 | |
| 0.591 | 1.102 | 0.787 | 0.669 | 30 | 1116 | 14493 | 7246 | 1.5 | |
| 0.630 | 1.260 | 0.827 | 0.669 | 52 | 1785 | 18841 | 9420 | 3.6 | |
| 0.669 | 1.378 | 0.984 | 0.827 | 55 | 1785 | 17391 | 8696 | 3.6 | |
| 0.709 | 1.378 | 0.984 | 0.827 | 59 | 1785 | 16667 | 8696 | 3.6 | |
| 0.748 | 1.378 | 0.984 | 0.827 | 63 | 1785 | 15942 | 8696 | 3.6 | |
| 0.787 | 1.496 | 1.024 | 0.827 | 111 | 3347 | 20290 | 10870 | 7.2 | |
| 0.866 | 1.575 | 1.024 | 0.827 | 118 | 3124 | 18841 | 10145 | 7.2 | |
| 0.945 | 1.850 | 1.260 | 1.024 | 184 | 4462 | 20290 | 10870 | 12.5 | |
| 0.984 | 1.850 | 1.260 | 1.024 | 192 | 4462 | 19565 | 10870 | 12.5 | |
| 1.000 | 1.850 | 1.260 | 1.024 | 196 | 4462 | 18841 | 10870 | 12.5 | |
| 1.102 | 1.969 | 1.260 | 1.024 | 325 | 6693 | 26812 | 14493 | 12.5 | |
| 1.181 | 2.165 | 1.260 | 1.024 | 347 | 6693 | 25362 | 13768 | 12.5 | |
| 1.260 | 2.165 | 1.260 | 1.024 | 369 | 6693 | 23913 | 13768 | 12.5 | |
| 1.378 | 2.362 | 1.457 | 1.220 | 538 | 8925 | 23913 | 13768 | 12.5 | |
| 1.496 | 2.559 | 1.457 | 1.220 | 590 | 8925 | 22464 | 13043 | 12.5 | |
| 1.575 | 2.559 | 1.457 | 1.220 | 620 | 8925 | 21014 | 13043 | 12.5 | |
| 1.654 | 2.953 | 1.732 | 1.417 | 885 | 12271 | 23913 | 13043 | 30.2 | |
| 1.772 | 2.953 | 1.732 | 1.417 | 959 | 12271 | 22464 | 13043 | 30.2 | |
| 1.890 | 3.150 | 1.732 | 1.417 | 1365 | 16734 | 28261 | 16667 | 30.2 | |
| 1.969 | 3.150 | 1.732 | 1.417 | 1401 | 16734 | 26812 | 16667 | 30.2 |
Images & Drawings
Product Characteristics

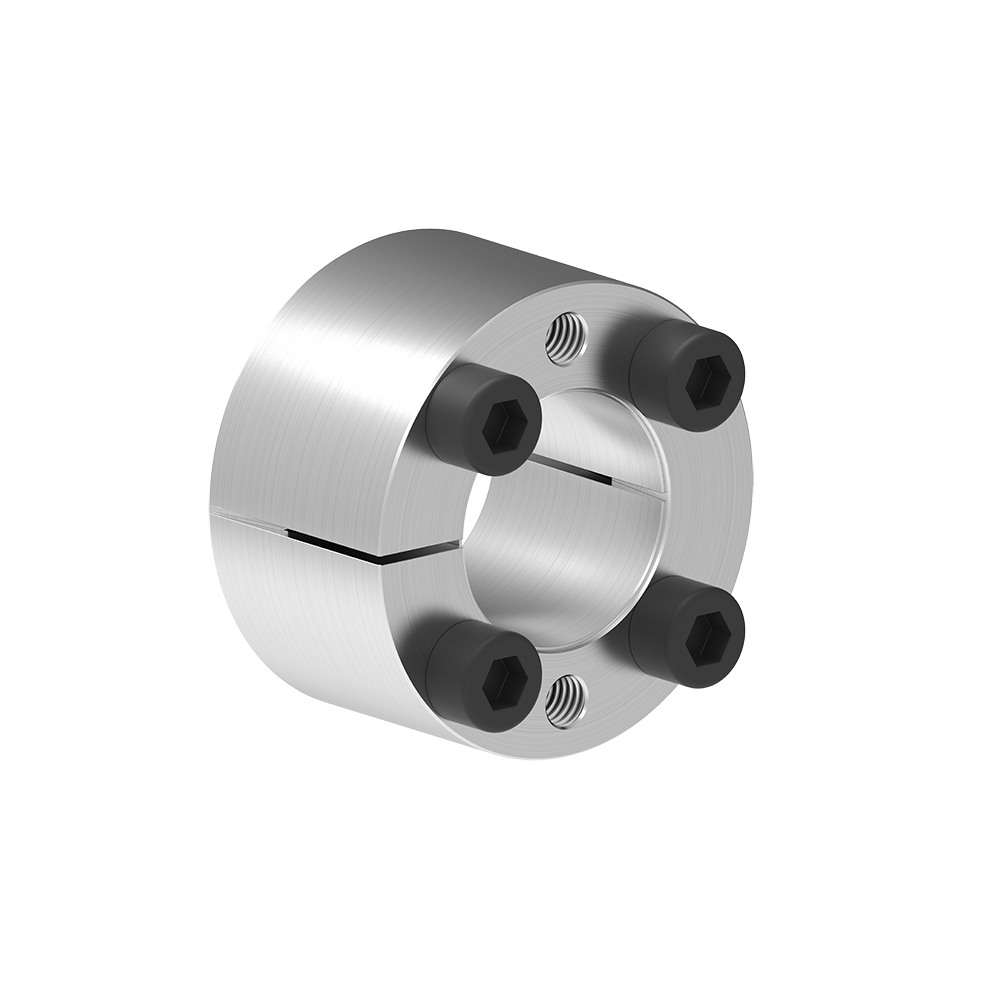

Self-centering, cost-efficient two piece locking assemblies for medium torques. During mounting, minor axial displacement of the hub occurs. Due to the small number of screws, cost savings during mounting are ensured. For disassembly only few release screws are required. Also availabe for very small shaft diameters.
Explanations

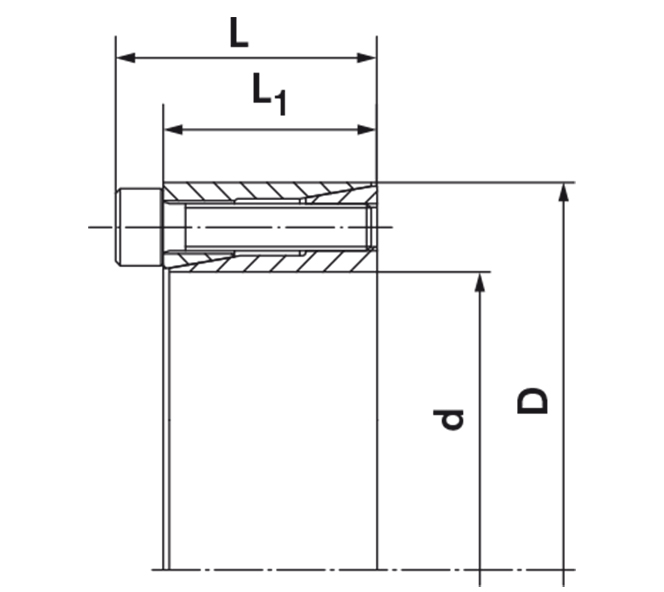

- L = Overall width
- L1 = Overall width (without screws)
- d = Inner ring diameter
- D = Outer diameter
RINGFEDER® Locking Assemblies – How to Use Them?
Learn more about application and functionality of our premium-quality, high-performance RINGFEDER® Locking Assemblies in our short video.
