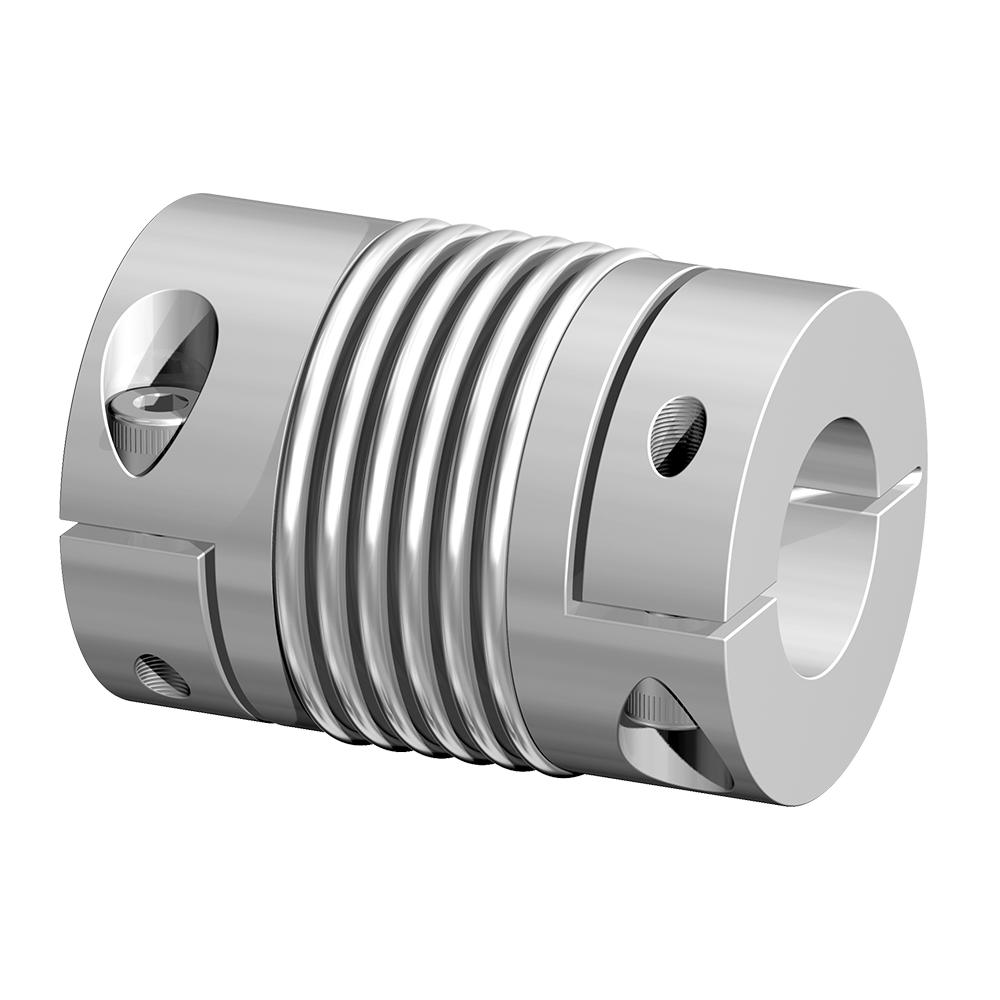

Metal Bellows Couplings GWB AKD
The production series 'AKD' offers the traditional metal bellows coupling which can be used for a wide range of applications. Its core characteristics are the backlash-free transmission of torque, high torsional stiffness, and excellent compensation of angular, axial and radial misalignments. Operational safety and easy assembly are two more factors speaking in favour of AKD.
Technical Data & CAD Models
| CAD |
Size
|
L
mm |
d1min
mm |
d1max
mm |
H
mm |
T
Nm |
nmax
1/min |
ΔKa
mm |
ΔKw
Grad |
ΔKr
mm |
DG1
mm |
TA1
Nm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18 | 71 | 8 | 26 | 47 | 22 | 12700 | 0,5 | 1,5 | 0,2 | 5 | 6 | |
| 30 | 73 | 10 | 30 | 56 | 36 | 10200 | 0,5 | 1,5 | 0,2 | 6 | 12 | |
| 60 | 89 | 12 | 35 | 67 | 75 | 8600 | 0,5 | 1,5 | 0,2 | 8 | 30 | |
| 80 | 103 | 14 | 42 | 84 | 95 | 6800 | 0,5 | 1,5 | 0,2 | 10 | 60 | |
| 150 | 103 | 14 | 42 | 84 | 180 | 6800 | 0,5 | 1,5 | 0,2 | 10 | 85 | |
| 200 | 113 | 22 | 46 | 93 | 240 | 6300 | 0,5 | 1,5 | 0,2 | 12 | 100 | |
| 300 | 115 | 24 | 60 | 110 | 360 | 5900 | 0,5 | 1,5 | 0,2 | 12 | 120 | |
| 500 | 122 | 35 | 64 | 122 | 600 | 4900 | 1 | 1,5 | 0,2 | 14 | 190 | |
| 800 | 140 | 40 | 75 | 139 | 800 | 5000 | 3,5 | 1,5 | 0,35 | 16 | 250 |
| CAD |
Size |
L inch |
d1min inch |
d1max inch |
H inch |
T ft-lbs |
nmax rpm |
ΔKa inch |
ΔKw degree |
ΔKr inch |
DG1 mm |
TA1 ft-lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18 | 2.795 | 0.315 | 1.024 | 1.850 | 16 | 12700 | 0.020 | 1.5 | 0.008 | 5 | 4.4 | |
| 30 | 2.874 | 0.394 | 1.181 | 2.205 | 27 | 10200 | 0.020 | 1.5 | 0.008 | 6 | 9 | |
| 60 | 3.504 | 0.472 | 1.378 | 2.638 | 55 | 8600 | 0.020 | 1.5 | 0.008 | 8 | 22 | |
| 80 | 4.055 | 0.551 | 1.654 | 3.307 | 70 | 6800 | 0.020 | 1.5 | 0.008 | 10 | 44 | |
| 150 | 4.055 | 0.551 | 1.654 | 3.307 | 133 | 6800 | 0.020 | 1.5 | 0.008 | 10 | 63 | |
| 200 | 4.449 | 0.866 | 1.811 | 3.661 | 177 | 6300 | 0.020 | 1.5 | 0.008 | 12 | 74 | |
| 300 | 4.528 | 0.945 | 2.362 | 4.331 | 266 | 5900 | 0.020 | 1.5 | 0.008 | 12 | 89 | |
| 500 | 4.803 | 1.378 | 2.520 | 4.803 | 443 | 4900 | 0.039 | 1.5 | 0.008 | 14 | 140 | |
| 800 | 5.512 | 1.575 | 2.953 | 5.472 | 590 | 5000 | 0.138 | 1.5 | 0.014 | 16 | 184 |

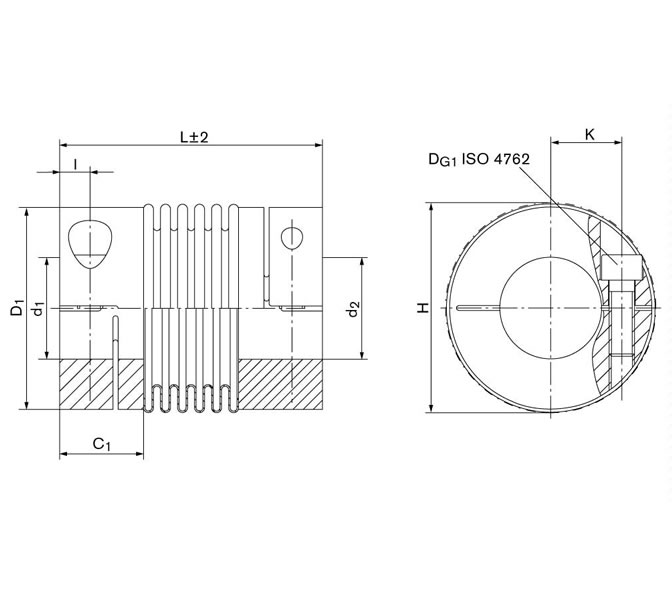

Images & Drawings
Product Characteristics
- Backlash-free transmission of torque
- High torsional stiffness, precision of transmission of rotational angle
- Different torsional stiffness
- Compact design, low moment of inertia
- Metal bellows made of stainless steel
- Simple and safe assembly
- Compensation of radial, axial and angular misalignment
- Free of wear, maintenance-free, no downtimes
- Not sensitive to temperatures between -30°C and +100°C
- Nominal torques between 0,1 – 5000 Nm
Advantages
- 100% inspection and traceability through individual marking
- Higher torques at same dimensions
- Compact design
- Extended bore ranges
- Customer-specific solutions
- Higher safety in application, e.g. no wrong screw tightening torques
Backlash-free Metal Bellows Couplings are used in the sector of mechanical engineering, where a torque or a rotary motion has to be transmitted from shaft to shaft in highest accuracy of angle.
- Pumps with axial and vertical drives
- High dynamic portal drives
- Spindle lifting units
- Linear units
- Packaging machines
- Machine tools
- Special machines
Series AKD
- Metal bellows coupling with clamping hubs
Characteristics
- Metal bellows made of stainless steel, hubs made of aluminum/hubs from size 800 made of steel
- The shaft tolerance should be within the fit tolerance “g6” or “h7”
- The contact surfaces have to be free from oil and grease
- Optional designs with keyway DIN 6885-1
- Optional special design in stainless steel
- Other sizes available on request
Downloads

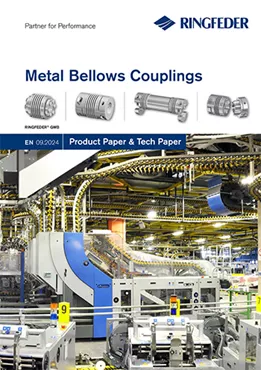

Product Paper Metal Bellows Couplings RINGFEDER® GWB

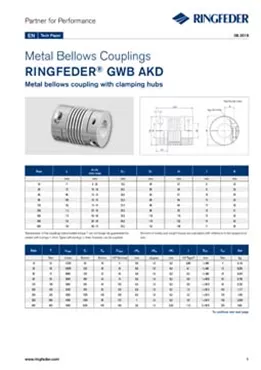

Tech Paper Metal Bellows Couplings RINGFEDER® GWB AKD

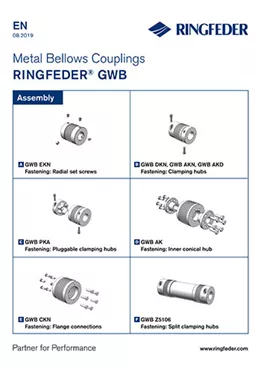

Instruction Metal Bellows Couplings RINGFEDER® GWB
