Shock Absorbing Elements DEFORM plus®

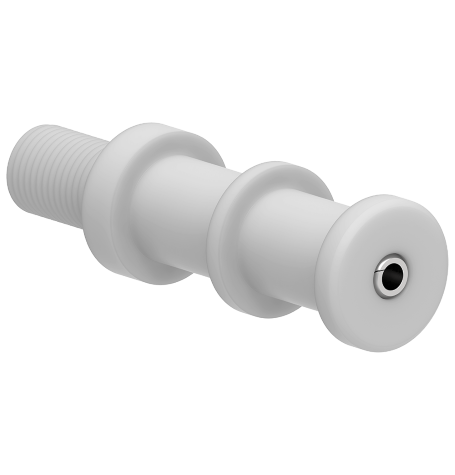

Our DEFORM plus® elastomeric shock absorbing elements are available in a variety of sizes and configurations.
Technical Data & CAD Models
You require CAD data for this product? Of course, we are more than happy to provide you with these. Contact us quickly and easily via our request form, by e-mail or using the "Need Help?" feature at the bottom right of this site.
| CAD |
Typ
|
Wn
Joule |
Fn
kN |
sn
mm |
D'
mm |
D1.
mm |
Lc
mm |
LM
mm |
tE mm |
Gw
kg |
DG
mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-008-011-E | 19 | 2,5 | 11,5 | 12 | 12,2 | 51,2 | 34,5 | 18 | 0,006 | 10 | |
| 1-009-016-E | 30 | 4,0 | 10,0 | 15 | 16,2 | 44,5 | 32,5 | 12 | 0,007 | 12 | |
| 1-010-014-A | 45 | 10,0 | 6,0 | 16 | 16,0 | 36,0 | 24,0 | 12 | 0,007 | 12 | |
| 1-012-020-E | 82 | 5,5 | 20,0 | 19 | 18,0 | 75,0 | 49,8 | 27 | 0,031 | 12 | |
| 1-014-016-A | 105 | 20,0 | 8,0 | 21 | 20,0 | 39,5 | 27,5 | 12 | 0,010 | 12 | |
| 1-015-027-E | 160 | 8,0 | 27,0 | 24 | 24,0 | 92,0 | 60,3 | 34 | 0,031 | 16 | |
| 1-018-012-P | 350 | 38,0 | 12,0 | 31 | 28,0 | 56,5 | 41,0 | 16 | 0,030 | 16 | |
| 1-021-031-E | 440 | 19,0 | 31,0 | 37 | 30,0 | 106,0 | 68,5 | 40 | 0,064 | 20 | |
| 1-024-024-A | 720 | 60,0 | 16,0 | 40 | 32,0 | 63,0 | 48,0 | 16 | 0,040 | 16 | |
| 1-022-035-A | 950 | 44,0 | 28,0 | 37 | 32,0 | 106,0 | 69,0 | 40 | 0,071 | 20 | |
| 1-024-040-C | 1000 | 33,0 | 40,0 | 44 | 34,0 | 120,0 | 85,0 | 50 | 0,080 | 20 | |
| 1-031-046-E | 1500 | 39,0 | 48,0 | 56 | 48,0 | 156,0 | 103,0 | 53 | 0,180 | 30 | |
| 1-026-032-A-S | 1970 | 80,0 | 32,0 | 60 | 44,6 | 90,0 | 72,1 | 31 | 0,060 | 12 | |
| 1-032-052-E | 2000 | 52,0 | 50,0 | 60 | 48,0 | 171,0 | 116,3 | 60 | 0,230 | 30 | |
| 1-037-060-E | 3150 | 65,0 | 60,0 | 58 | 50,0 | 190,0 | 145,0 | 71 | 0,300 | 30 | |
| 1-036-084-C | 4700 | 70,0 | 81,0 | 65 | 58,0 | 230,0 | 169,5 | 100 | 0,500 | 30 | |
| 2-020-033-E | 310 | 13,0 | 30,0 | 30 | 34,5 | 106,0 | 20 | 0,340 | 12 | ||
| 2-020-022-A | 425 | 26,0 | 20,0 | 30 | 34,5 | 90,0 | 15 | 0,320 | 12 | ||
| 2-020-033-A | 620 | 26,0 | 30,0 | 30 | 34,5 | 106,0 | 20 | 0,340 | 12 | ||
| 2-028-014-A | 700 | 70,0 | 14,0 | 42 | 34,5 | 54,0 | 14 | 0,220 | 12 | ||
| 2-024-030-A | 1000 | 45,0 | 30,0 | 40 | 34,5 | 103,0 | 23 | 0,400 | 12 | ||
| 2-044-034-A | 3000 | 110,0 | 33,0 | 61 | 50,0 | 89,0 | 16 | 0,583 | 12 | ||
| 3-085-150-A | 70000 | 680,0 | 144,0 | 134 | 141,0 | 485,0 | 51 | 10,700 | 24 |
| CAD |
Typ |
Wn ft-lbs |
Fn lbs |
sn inch |
D' inch |
D1. inch |
Lc inch |
LM inch |
tE inch |
Gw lbs |
DG mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-008-011-E | 14 | 562 | 0.453 | 0.472 | 0.480 | 2.016 | 1.358 | 0.709 | 0.013 | 10 | |
| 1-009-016-E | 22 | 899 | 0.394 | 0.591 | 0.638 | 1.752 | 1.280 | 0.472 | 0.015 | 12 | |
| 1-010-014-A | 33 | 2247 | 0.236 | 0.630 | 0.630 | 1.417 | 0.945 | 0.472 | 0.015 | 12 | |
| 1-012-020-E | 60 | 1236 | 0.787 | 0.748 | 0.709 | 2.953 | 1.961 | 1.063 | 0.068 | 12 | |
| 1-014-016-A | 77 | 4495 | 0.315 | 0.827 | 0.787 | 1.555 | 1.083 | 0.472 | 0.022 | 12 | |
| 1-015-027-E | 118 | 1798 | 1.063 | 0.945 | 0.945 | 3.622 | 2.374 | 1.339 | 0.068 | 16 | |
| 1-018-012-P | 258 | 8540 | 0.472 | 1.220 | 1.102 | 2.224 | 1.614 | 0.630 | 0.066 | 16 | |
| 1-024-024-A | 531 | 13484 | 0.630 | 1.575 | 1.260 | 2.480 | 1.890 | 0.630 | 0.088 | 16 | |
| 1-022-035-A | 701 | 9888 | 1.102 | 1.457 | 1.260 | 4.173 | 2.717 | 1.575 | 0.157 | 20 | |
| 1-024-040-C | 738 | 7416 | 1.575 | 1.732 | 1.339 | 4.724 | 3.346 | 1.969 | 0.176 | 20 | |
| 1-031-046-E | 1106 | 8765 | 1.890 | 2.205 | 1.890 | 6.142 | 4.055 | 2.087 | 0.397 | 30 | |
| 1-026-032-A-S | 1453 | 17979 | 1.260 | 2.362 | 1.756 | 3.543 | 2.839 | 1.220 | 0.132 | 12 | |
| 1-032-052-E | 1475 | 11686 | 1.969 | 2.362 | 1.890 | 6.732 | 4.579 | 2.362 | 0.507 | 30 | |
| 1-037-060-E | 2323 | 14608 | 2.362 | 2.283 | 1.969 | 7.480 | 5.709 | 2.795 | 0.661 | 30 | |
| 1-036-084-C | 3467 | 15732 | 3.189 | 2.559 | 2.283 | 9.055 | 6.673 | 3.937 | 1.102 | 30 | |
| 2-020-033-E | 229 | 2922 | 1.181 | 1.181 | 1.358 | 4.173 | 0.787 | 0.750 | 12 | ||
| 2-020-022-A | 313 | 5843 | 0.787 | 1.181 | 1.358 | 3.543 | 0.591 | 0.705 | 12 | ||
| 2-020-033-A | 457 | 5843 | 1.181 | 1.181 | 1.358 | 4.173 | 0.787 | 0.750 | 12 | ||
| 2-028-014-A | 516 | 15732 | 0.551 | 1.654 | 1.358 | 2.126 | 0.551 | 0.485 | 12 | ||
| 2-024-030-A | 738 | 10113 | 1.181 | 1.575 | 1.358 | 4.055 | 0.906 | 0.882 | 12 | ||
| 2-044-034-A | 2,213 | 24721 | 1.299 | 2.402 | 1.969 | 3.504 | 0.630 | 1.285 | 12 | ||
| 3-085-150-A | 51630 | 152821 | 5.669 | 5.276 | 5.551 | 19.094 | 2.008 | 23.589 | 24 |
Images & Drawings
Product Characteristics
SHOCK ABSORBING UNITS / DEFORM plus®
DEFORM plus® Shock Absorbing Elements are one-time use damping elements for high energy absorption. They transform kinetic energy caused by an impact into deformation energy. DEFORM plus® units have the following characteristics:
- High damping properties (up to 95%)
- Low costs
- Small installation space
- Easy replacement of used elements
- Maintenance-free
- No corrosion

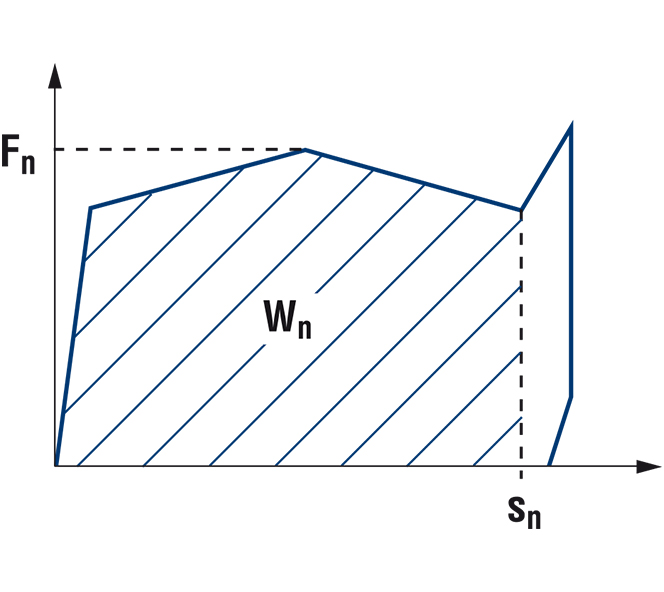

- Rectangular force-travel diagram
- Versatility in design
A damping element consists of a thickwalled, Cylinder of high quality thermoplastic resin. On impact, it folds/shrinks to a discus-shaped structure.
Operating conditions
- -25 up to + 50 °C
- Resistant to lubricants
- Resistant to hydrolysis
- Almost equal properties under dynamic and quasi-static loads, force Fn raised factor at dynamic load fF ≈1 + 0,075 * v (m/s)
- For outdoor applications we recommend the units to be coated or suitably protected against UV-rays
- Plan thread generally in the unit, do not fix by a screw nut
