Shrink Discs Safety Covers
Suited for Series RINGFEDER® RfN 4061 and RINGFEDER® RfN 4161
- 13 Sizes
- High-Quality Synthetic Material
- Available up to Shrink Disc Size 140 x 230 mm
- Inner Diameter d: 49-225 mm (1.929-8.858 inch)
- Solid Shaft Diameter dw: 26-115 mm (1.024-4.528 inch)
- Length t: 22.5-67 mm (0.886-2.638 inch)
Product Characteristics
Your Advantages

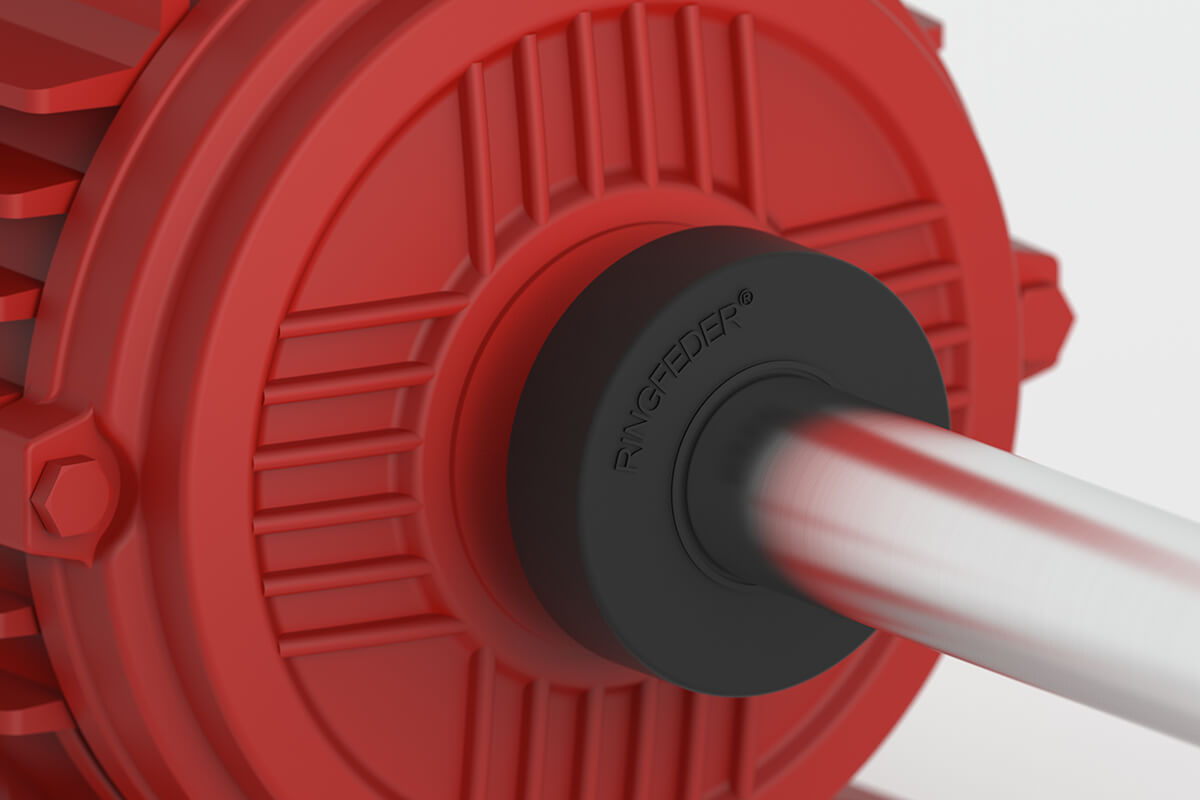

Specially developed and designed for shrink discs of the three-part series RINGFEDER® RfN 4061 as well as the two-part series RINGFEDER® RfN 4161, original RINGFEDER® Safety Covers provide reliable and safe contact protection against screw heads of rotating shrink discs. They are made of high-quality black synthetic material, which features outstanding tear and abrasion resistance as well as excellent media stability.
RINGFEDER® Safety Covers are particularly convincing due to the following features:
- Effective, secure contact protection from the screw heads of rotating shrink discs.
- Optimum availability in 13 sizes for shrink discs of the series RINGFEDER® RfN 4061 and RINGFEDER® RfN 4161 up to size 140 x 230 mm.
- Superior product quality thanks to perfect fit and use of high-grade synthetic material with ideal wear and durability properties.
- High degree of user-friendliness due to fast, simple assembly and disassembly.
- Attractive pricing and short delivery times.
Technical Information
Detailed selection and operating criteria as well as geometrical data can also be obtained from the document Tech Paper RINGFEDER® Safety Covers for Shrink Discs RfN 4061 & RfN 4161.
Size Assignment & Size Selection
| Safety Covers |
Shrink Discs | |
| Cover No. |
RfN 4061 | RfN 4161 |
| SC01 | 21 x 50 24 x 50 30 x 52 |
24 x 50 26 x 51.5 |
| SC02 | 30 x 60 | 30 x 60 |
| SC03 | 36 x 72 38 x 72 40 x 72 |
36 x 72 38 x 72 |
| SC04 | 44 x 80 48 x 80 |
40 x 80 44 x 80 |
| SC05 | 50 x 90 | 50 x 90 |
| SC06 | 62 x 110 68 x 115 |
60 x 110 62 x 110 68 x 115 |
| SC07 | 75 x 138 80 x 145 |
75 x 138 80 x 141 |
| SC08 | 85 x 155 90 x 155 |
85 x 155 90 x 155 |
| SC09 | 110 x 185 115 x 185 |
100 x 185 105 x 185 110 x 185 |
| SC10 | 95 x 170 100 x 170 |
95 x 170 |
| SC11 | — | 115 x 200 120 x 200 |
| SC12 | 125 x 215 | 125 x 215 |
| SC13 | 140 x 230 | 130 x 230 135 x 230 140 x 230 |
Images & Drawings
Technical Data & CAD Models
You require CAD data for this product? Of course, we are more than happy to provide you with these. Contact us quickly and easily via our request form, by e-mail or using the "Need Help?" feature at the bottom right of this site.

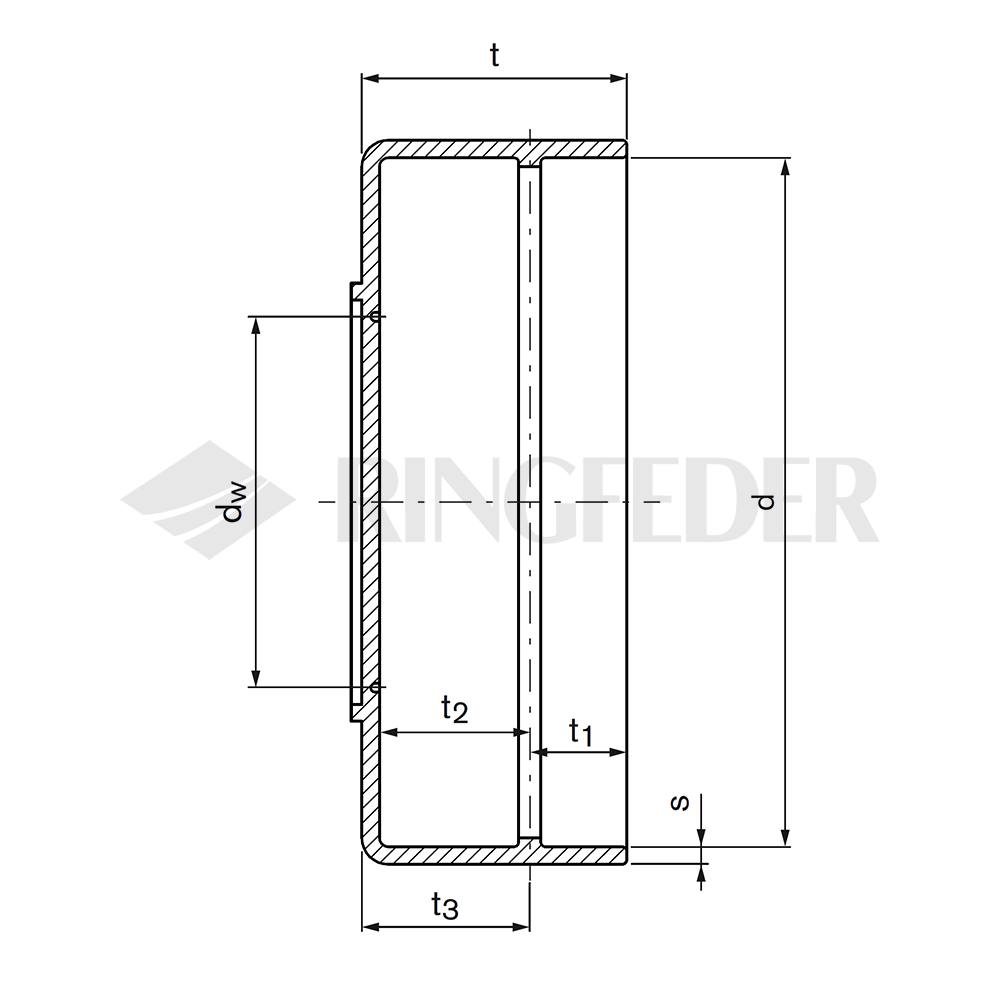

| CAD |
Safety Cover No.
|
d
mm |
dw
mm |
s
mm |
t2
mm |
t3
mm |
t
mm |
t1
mm |
|---|---|---|---|---|---|---|---|---|
| SC01 | 49 | 26 | 2,4 | 14,1 | 16,5 | 22,5 | 6,0 | |
| SC02 | 59 | 26 | 2 | 15 | 17 | 23 | 7,0 | |
| SC03 | 70 | 33 | 2 | 19,5 | 21,5 | 27 | 5,5 | |
| SC04 | 78 | 40 | 2 | 19,5 | 21,5 | 29 | 7,5 | |
| SC05 | 88 | 42 | 2 | 20,25 | 22,25 | 30,5 | 8,3 | |
| SC06 | 107 | 60 | 3 | 21,75 | 24,75 | 33,5 | 8,8 | |
| SC07 | 135 | 70 | 3 | 24,8 | 27,8 | 36,8 | 9,0 | |
| SC08 | 151 | 75 | 3 | 28,8 | 31,8 | 44,8 | 13,0 | |
| SC09 | 180 | 95 | 3 | 36,9 | 39,9 | 58,4 | 18,5 | |
| SC10 | 166 | 80 | 3 | 32,9 | 35,9 | 51,5 | 15,6 | |
| SC11 | 195 | 95 | 3,5 | 42 | 45,5 | 61,5 | 16,0 | |
| SC12 | 210 | 100 | 3,5 | 39,9 | 43,4 | 59,4 | 16,0 | |
| SC13 | 225 | 115 | 3,5 | 44,25 | 47,75 | 67 | 19,3 |
| CAD |
Safety Cover No. |
d inch |
dw inch |
s inch |
t2 inch |
t3 inch |
t inch |
t1 inch |
|---|---|---|---|---|---|---|---|---|
| SC01 | 1.929 | 1.024 | 0.094 | 0.555 | 0.650 | 0.886 | 0.236 | |
| SC02 | 2.323 | 1.024 | 0.079 | 0.591 | 0.669 | 0.906 | 0.276 | |
| SC03 | 2.756 | 1.299 | 0.079 | 0.768 | 0.846 | 1.063 | 0.217 | |
| SC04 | 3.071 | 1.575 | 0.079 | 0.768 | 0.846 | 1.142 | 0.295 | |
| SC05 | 3.465 | 1.654 | 0.079 | 0.797 | 0.876 | 1.201 | 0.327 | |
| SC06 | 4.213 | 2.362 | 0.118 | 0.856 | 0.974 | 1.319 | 0.346 | |
| SC07 | 5.315 | 2.756 | 0.118 | 0.976 | 1.094 | 1.449 | 0.354 | |
| SC08 | 5.945 | 2.953 | 0.118 | 1.134 | 1.252 | 1.764 | 0.512 | |
| SC09 | 7.087 | 3.740 | 0.118 | 1.453 | 1.571 | 2.299 | 0.728 | |
| SC10 | 6.535 | 3.150 | 0.118 | 1.295 | 1.413 | 2.028 | 0.614 | |
| SC11 | 7.677 | 3.740 | 0.138 | 1.654 | 1.791 | 2.421 | 0.630 | |
| SC12 | 8.268 | 3.937 | 0.138 | 1.571 | 1.709 | 2.339 | 0.630 | |
| SC13 | 8.858 | 4.528 | 0.138 | 1.742 | 1.880 | 2.638 | 0.760 |
