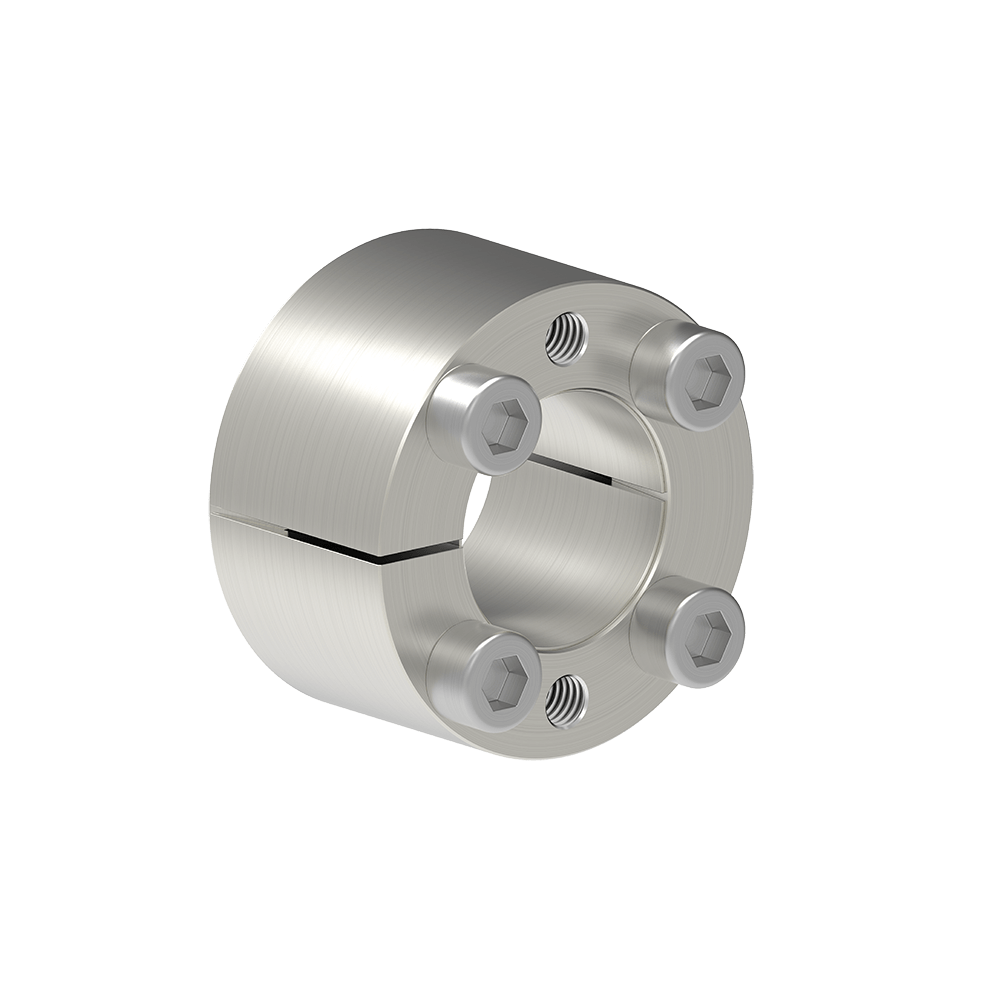

Locking Assemblies RfN 7061 Stainless Steel
Self-centering 2-piece Locking Assemblies for medium torques. During mounting, minor axial displacement of the hub occurs in opposite direction of the screw head. Due to the small number of screws, cost savings during mounting are ensured. For disassembly only few release screws are required.
Technical Data & CAD Models
| CAD |
d
mm |
D
mm |
L
mm |
L1
mm |
T
Nm |
pW
N/mm2 |
pN
N/mm2 |
DG
mm |
TA
Nm |
|---|---|---|---|---|---|---|---|---|---|
| 6 | 16 | 13,5 | 11 | 3 | 49 | 19 | 2,5 | 0,5 | |
| 6,35 | 16 | 13,5 | 11 | 3 | 49 | 19 | 2,5 | 0,5 | |
| 7 | 17 | 13,5 | 11 | 3 | 42 | 17 | 2,5 | 0,5 | |
| 8 | 18 | 13,5 | 11 | 4 | 37 | 17 | 2,5 | 0,5 | |
| 9 | 20 | 15,5 | 13 | 6 | 37 | 17 | 2,5 | 0,5 | |
| 9,53 | 20 | 15,5 | 13 | 6 | 37 | 17 | 2,5 | 0,5 | |
| 10 | 20 | 15,5 | 13 | 6 | 33 | 17 | 2,5 | 0,5 | |
| 11 | 22 | 15,5 | 13 | 7 | 30 | 15 | 2,5 | 0,5 | |
| 12 | 22 | 15,5 | 13 | 7 | 26 | 15 | 2,5 | 0,5 | |
| 14 | 26 | 20 | 17 | 19 | 57 | 30 | 3 | 1,3 | |
| 15 | 28 | 20 | 17 | 22 | 55 | 27 | 3 | 1,3 | |
| 16 | 32 | 21 | 17 | 38 | 71 | 35 | 4 | 2,9 | |
| 17 | 35 | 25 | 21 | 41 | 66 | 33 | 4 | 2,9 | |
| 18 | 35 | 25 | 21 | 44 | 63 | 33 | 4 | 2,9 | |
| 19 | 35 | 25 | 21 | 46 | 60 | 33 | 4 | 2,9 | |
| 20 | 38 | 26 | 21 | 82 | 77 | 41 | 5 | 5,7 | |
| 22 | 40 | 26 | 21 | 88 | 71 | 38 | 5 | 5,7 | |
| 24 | 47 | 32 | 26 | 193 | 108 | 41 | 6 | 14 | |
| 25 | 47 | 32 | 26 | 201 | 104 | 41 | 6 | 14 | |
| 25,4 | 47 | 32 | 26 | 205 | 100 | 41 | 6 | 14 | |
| 28 | 50 | 32 | 26 | 341 | 143 | 55 | 6 | 14 | |
| 30 | 55 | 32 | 26 | 364 | 135 | 52 | 6 | 14 | |
| 32 | 55 | 32 | 26 | 387 | 127 | 52 | 6 | 14 | |
| 35 | 60 | 37 | 31 | 565 | 127 | 52 | 6 | 14 | |
| 38 | 65 | 37 | 31 | 620 | 120 | 49 | 6 | 14 | |
| 40 | 65 | 37 | 31 | 651 | 112 | 49 | 6 | 14 | |
| 42 | 75 | 44 | 36 | 930 | 127 | 49 | 8 | 34 | |
| 45 | 75 | 44 | 36 | 1007 | 120 | 49 | 8 | 34 | |
| 48 | 80 | 44 | 36 | 1433 | 151 | 63 | 8 | 34 | |
| 50 | 80 | 44 | 36 | 1472 | 143 | 63 | 8 | 34 |
| CAD |
d inch |
D inch |
L inch |
L1 inch |
T ft-lbs |
pW psi |
pN psi |
DG mm |
TA ft-lbs |
|---|---|---|---|---|---|---|---|---|---|
| 0.236 | 0.630 | 0.531 | 0.433 | 2.2 | 7101 | 2754 | 2.5 | 0.4 | |
| 0.250 | 0.630 | 0.531 | 0.433 | 2.2 | 7101 | 2754 | 2.5 | 0.4 | |
| 0.276 | 0.669 | 0.531 | 0.433 | 2.2 | 6087 | 2464 | 2.5 | 0.4 | |
| 0.315 | 0.709 | 0.531 | 0.433 | 3.0 | 5362 | 2464 | 2.5 | 0.4 | |
| 0.354 | 0.787 | 0.610 | 0.512 | 4.4 | 5362 | 2464 | 2.5 | 0.4 | |
| 0.375 | 0.787 | 0.610 | 0.512 | 4.4 | 5362 | 2464 | 2.5 | 0.4 | |
| 0.394 | 0.787 | 0.610 | 0.512 | 4.4 | 4783 | 2464 | 2.5 | 0.4 | |
| 0.433 | 0.866 | 0.610 | 0.512 | 5.2 | 4348 | 2174 | 2.5 | 0.4 | |
| 0.472 | 0.866 | 0.610 | 0.512 | 5.2 | 3768 | 2174 | 2.5 | 0.4 | |
| 0.551 | 1.024 | 0.787 | 0.669 | 14.0 | 8261 | 4348 | 3 | 1.0 | |
| 0.591 | 1.102 | 0.787 | 0.669 | 16.2 | 7971 | 3913 | 3 | 1.0 | |
| 0.630 | 1.260 | 0.827 | 0.669 | 28.0 | 10290 | 5072 | 4 | 2.1 | |
| 0.669 | 1.378 | 0.984 | 0.827 | 30.2 | 9565 | 4783 | 4 | 2.1 | |
| 0.709 | 1.378 | 0.984 | 0.827 | 32.5 | 9130 | 4783 | 4 | 2.1 | |
| 0.748 | 1.378 | 0.984 | 0.827 | 33.9 | 8696 | 4783 | 4 | 2.1 | |
| 0.787 | 1.496 | 1.024 | 0.827 | 60.5 | 11159 | 5942 | 5 | 4.2 | |
| 0.866 | 1.575 | 1.024 | 0.827 | 64.9 | 10290 | 5507 | 5 | 4.2 | |
| 0.945 | 1.850 | 1.260 | 1.024 | 142.4 | 15652 | 5942 | 6 | 10.3 | |
| 0.984 | 1.850 | 1.260 | 1.024 | 148.3 | 15072 | 5942 | 6 | 10.3 | |
| 1.000 | 1.850 | 1.260 | 1.024 | 151.2 | 14493 | 5942 | 6 | 10.3 | |
| 1.102 | 1.969 | 1.260 | 1.024 | 251.5 | 20725 | 7971 | 6 | 10.3 | |
| 1.181 | 2.165 | 1.260 | 1.024 | 268.5 | 19565 | 7536 | 6 | 10.3 | |
| 1.260 | 2.165 | 1.260 | 1.024 | 285.4 | 18406 | 7536 | 6 | 10.3 | |
| 1.378 | 2.362 | 1.457 | 1.220 | 416.7 | 18406 | 7536 | 6 | 10.3 | |
| 1.496 | 2.559 | 1.457 | 1.220 | 457.3 | 17391 | 7101 | 6 | 10.3 | |
| 1.575 | 2.559 | 1.457 | 1.220 | 480.2 | 16232 | 7101 | 6 | 10.3 | |
| 1.654 | 2.953 | 1.732 | 1.417 | 685.9 | 18406 | 7101 | 8 | 25.1 | |
| 1.772 | 2.953 | 1.732 | 1.417 | 742.7 | 17391 | 7101 | 8 | 25.1 | |
| 1.890 | 3.150 | 1.732 | 1.417 | 1056.9 | 21884 | 9130 | 8 | 25.1 | |
| 1.969 | 3.150 | 1.732 | 1.417 | 1085.7 | 20725 | 9130 | 8 | 25.1 |

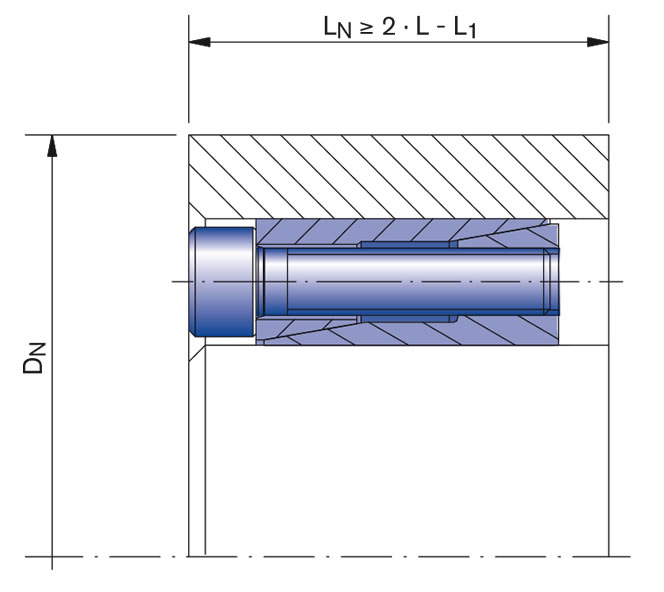

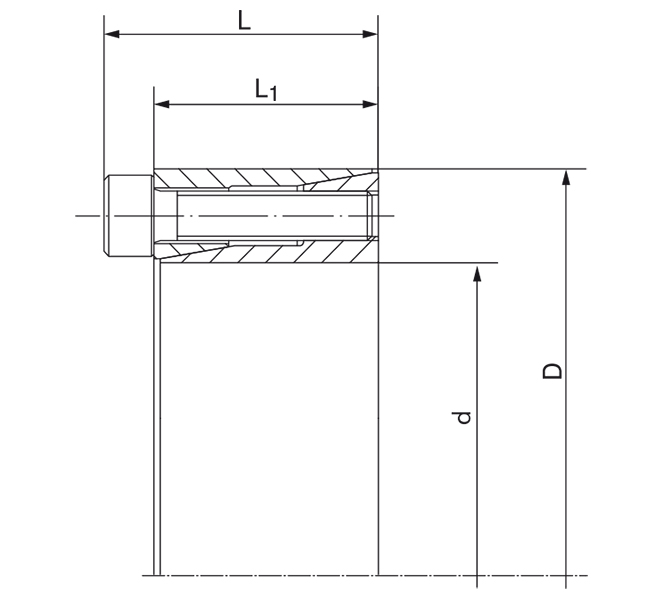

Images & Drawings
Product Characteristics
- Self-centering 2-piece Locking Assemblies for medium torques. During mounting, minor axial displacement of the hub occurs in opposite direction of the screw head. Due to the small number of screws, cost savings during mounting are ensured. For disassembly only few release screws are required.
Tolerances
We recommend the following mounting tolerances
Shaft: h8; Hub: H8
RINGFEDER® Locking Assemblies – How to Use Them?
Learn more about application and functionality of our premium-quality, high-performance RINGFEDER® Locking Assemblies in our short video.
Downloads
Product Paper RINGFEDER® Locking Assemblies
Tech Paper Locking Assemblies RINGFEDER® RfN 7061 stainless steel

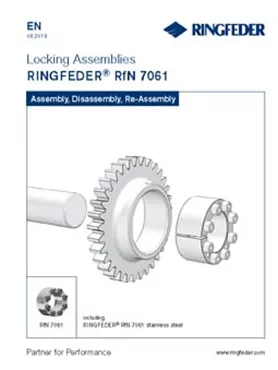

Instruction Manual Locking Assemblies RINGFEDER® RfN 7061
