Metal Bellows Couplings GWB PKA | RINGFEDER®

Backlash-free Metal Bellows Coupling Series PKA with clamping hub

Download
Request

Technical Data & CAD Models

Download of CAD data is available to you after login with your personal Customer or Distributor Account. You do not have an account yet? Register here without any costs or obligations.

CAD
Größe/Size
L
mm
d1min
mm
d1max
mm
d2min
mm
d2max
mm
d1kmin
mm
d1kmax
mm
d2kmin
mm
d2kmax
mm
H
mm
T
Nm
nmax
1/min
ΔKa
mm
ΔKw
Grad
ΔKr
mm
TA1
Nm
0,4 26 3 8 3 6 - - - - 17 0,5 15000 0,2 1,2 0,1 0,3
0,4 28 3 8 3 6 - - - - 17 0,5 15000 0,3 2 0,15 0,3
0,4 32 3 8 3 6 - - - - 17 0,5 15000 0,4 2 0,2 0,3
0,9 27 3 8 3 6 - - - - 17 1,1 15000 0,2 1,2 0,1 0,6
0,9 30 3 8 3 6 - - - - 17 1,1 15000 0,3 2 0,15 0,6
0,9 34 3 8 3 6 - - - - 17 1,1 15000 0,4 2 0,2 0,6
1,5 32 3 10 3 10 6 10 - - 21,5 1,75 15000 0,25 1,2 0,1 0,8
1,5 36 3 10 3 10 6 10 - - 21,5 1,75 15000 0,4 2 0,15 0,8
2 37 3 14 3 12 6 14 6 10 27 2,4 15000 0,3 1,2 0,1 1,5
2 43 3 14 3 12 6 14 6 10 27 2,4 15000 0,4 2 0,2 1,5
2 47 3 14 3 12 6 14 6 10 27 2,4 15000 0,5 2 0,25 1,5
4,5 49 5 17 5 16 6 17 6 12 34,5 5,5 15000 0,3 1,2 0,1 3
4,5 57 5 17 5 16 6 17 6 12 34,5 5,5 15000 0,5 2 0,2 3
10 55 5 24 5 20 6 24 6 16 41,5 12 15000 0,4 1,2 0,15 3
10 66 5 24 5 20 6 24 6 16 41,5 12 15000 0,5 2 0,25 3
18 59 10 26 8 21 10 26 8 17 47 22 12700 0,4 1,2 0,15 6
18 67 10 26 8 21 10 26 8 17 47 22 12700 0,5 1,5 0,2 6
30 70 10 30 10 25 10 30 10 22 56,5 36 10200 0,4 1 0,1 12
30 78 10 30 10 25 10 30 10 22 56,5 36 10200 0,5 1,5 0,2 12
60 85 14 34 12 32 14 34 12 30 66,5 75 8600 0,4 1 0,1 30
60 96 14 34 12 32 14 34 12 30 66,5 75 8600 0,5 1,5 0,2 30
150 95 17 42 15 40 17 42 15 38 83 180 6800 0,4 1 0,2 85
150 107 17 42 15 40 17 42 15 38 83 180 6800 0,5 1,5 0,2 85
300 112 24 60 24 56 24 60 24 44 110 360 5900 0,4 1 0,2 120
300 123 24 60 24 56 24 60 24 44 110 360 5900 0,5 1,5 0,2 120
500 134 35 64 35 64 35 64 35 50 119 600 4900 0,5 1 0,2 190
500 145 35 64 35 64 35 64 35 50 119 600 4900 1 1,5 0,2 190
CAD Größe/Size
 		L
inch 		d1min
inch 		d1max
inch 		d2min
inch 		d2max
inch 		d1kmin
inch 		d1kmax
inch 		d2kmin
inch 		d2kmax
inch 		H
inch 		T
ft-lbs 		nmax
rpm 		ΔKa
inch 		ΔKw
degree 		ΔKr
inch 		TA1
ft-lbs
  0.4 1.024 0.118 0.315 0.118 0.236 - - - - 0.669 0.4 15000 0.008 1.2 0.004 0.22
  0.4 1.102 0.118 0.315 0.118 0.236 - - - - 0.669 0.4 15000 0.012 2.0 0.006 0.22
  0.4 1.260 0.118 0.315 0.118 0.236 - - - - 0.669 0.4 15000 0.016 2.0 0.008 0.22
  0.9 1.063 0.118 0.315 0.118 0.236 - - - - 0.669 0.8 15000 0.008 1.2 0.004 0.44
  0.9 1.181 0.118 0.315 0.118 0.236 - - - - 0.669 0.8 15000 0.012 2.0 0.006 0.44
  0.9 1.339 0.118 0.315 0.118 0.236 - - - - 0.669 0.8 15000 0.016 2.0 0.008 0.44
  1.5 1.260 0.118 0.394 0.118 0.394 0.236 0.394 - - 0.846 1.3 15000 0.010 1.2 0.004 0.59
  1.5 1.417 0.118 0.394 0.118 0.394 0.236 0.394 - - 0.846 1.3 15000 0.016 2.0 0.006 0.59
  2 1.457 0.118 0.551 0.118 0.472 0.236 0.551 0.236 0.394 1.063 1.8 15000 0.012 1.2 0.004 1.11
  2 1.693 0.118 0.551 0.118 0.472 0.236 0.551 0.236 0.394 1.063 1.8 15000 0.016 2.0 0.008 1.11
  2 1.850 0.118 0.551 0.118 0.472 0.236 0.551 0.236 0.394 1.063 1.8 15000 0.020 2.0 0.010 1.11
  4.5 1.929 0.197 0.669 0.197 0.630 0.236 0.669 0.236 0.472 1.358 4.1 15000 0.012 1.2 0.004 2.21
  4.5 2.244 0.197 0.669 0.197 0.630 0.236 0.669 0.236 0.472 1.358 4.1 15000 0.020 2.0 0.008 2.21
  10 2.165 0.197 0.945 0.197 0.787 0.236 0.945 0.236 0.630 1.634 8.9 15000 0.016 1.2 0.006 2.21
  10 2.598 0.197 0.945 0.197 0.787 0.236 0.945 0.236 0.630 1.634 8.9 15000 0.020 2.0 0.010 2.21
  18 2.323 0.394 1.024 0.315 0.827 0.394 1.024 0.315 0.669 1.850 16.2 12700 0.016 1.2 0.006 4.43
  18 2.638 0.394 1.024 0.315 0.827 0.394 1.024 0.315 0.669 1.850 16.2 12700 0.020 1.5 0.008 4.43
  30 2.756 0.394 1.181 0.394 0.984 0.394 1.181 0.394 0.866 2.224 26.6 10200 0.016 1.0 0.004 8.85
  30 3.071 0.394 1.181 0.394 0.984 0.394 1.181 0.394 0.866 2.224 26.6 10200 0.020 1.5 0.008 8.85
  60 3.346 0.551 1.339 0.472 1.260 0.551 1.339 0.472 1.181 2.618 55.3 8600 0.016 1.0 0.004 22.13
  60 3.780 0.551 1.339 0.472 1.260 0.551 1.339 0.472 1.181 2.618 55.3 8600 0.020 1.5 0.008 22.13
  150 3.740 0.669 1.654 0.591 1.575 0.669 1.654 0.591 1.496 3.268 132.8 6800 0.016 1.0 0.008 62.69
  150 4.213 0.669 1.654 0.591 1.575 0.669 1.654 0.591 1.496 3.268 132.8 6800 0.020 1.5 0.008 62.69
  300 4.409 0.945 2.362 0.945 2.205 0.945 2.362 0.945 1.732 4.331 265.5 5900 0.016 1.0 0.008 88.51
  300 4.843 0.945 2.362 0.945 2.205 0.945 2.362 0.945 1.732 4.331 265.5 5900 0.020 1.5 0.008 88.51
  500 5.276 1.378 2.520 1.378 2.520 1.378 2.520 1.378 1.969 4.685 442.5 4900 0.020 1.0 0.008 140.14
  500 5.709 1.378 2.520 1.378 2.520 1.378 2.520 1.378 1.969 4.685 442.5 4900 0.039 1.5 0.008 140.14

Images & Drawings

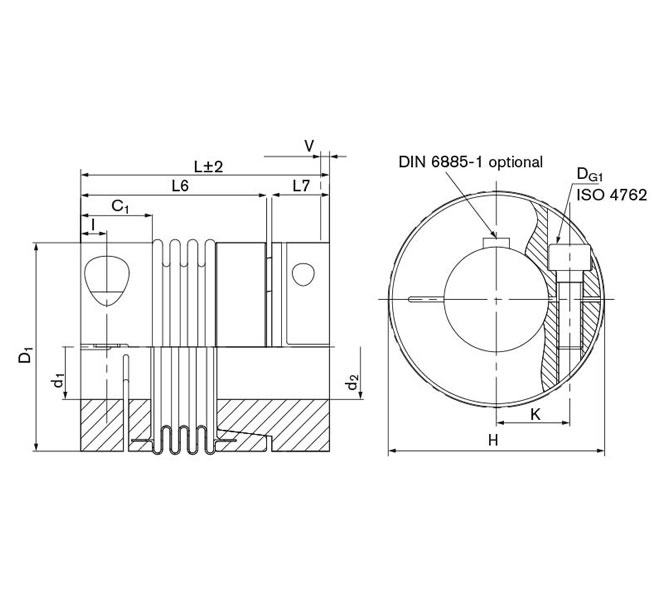

Dimensions Dimensions

Product Characteristics

Series PKA with clamping hub

  • Metal bellows made of stainless steel, hubs made of aluminum
  • Backlash-free and torsional stiffness
  • High-tensile pluggable hub
  • High power performance
  • Wear- and maintenance-free
  • Axial pluggable
  • Easy mounting and dismounting

Technical Data

  • TKN = Nominal torque
  • MA = Tightening torque of retaining screws
  • Cy dyn = Dynamic torsional stiffness
  • Cr = Radial spring stiffness
  • Ca = Axial spring stiffness
  • nmax = Max. rotational speed
  • V = Preload distance
  • △Ka = Max. approved misalignment axial
  • △Kw = Max. approved misalignment angular
  • △Kr = Max. approved misalignment radial
  • J = Moment of inertia
